Auxiliary Climate Control Assembly

Auxiliary Climate Control Assembly

Service Repair No - 82.26.22

Removal
1. Remove the rear passenger entertainment control panel assembly.

NOTE: Floor console shown removed for clarity.

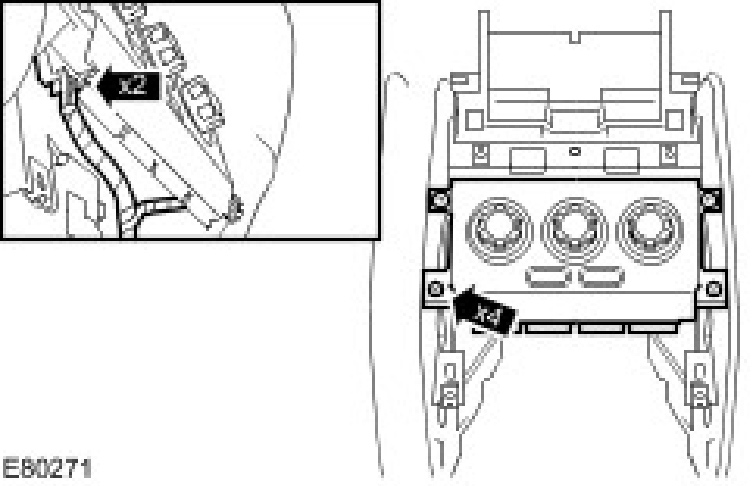

2. Remove the rear auxiliary climate control assembly,
^ Remove the 4 screws.
^ Disconnect the 2 electrical connectors.





Installation
1. Install the rear auxiliary climate control assembly.
^ Connect the 2 electrical connectors.
^ Install the 4 screws.
2. Install the rear passenger entertainment control panel assembly.
