Knock Sensor: Service and Repair

Knock Sensor (KS)

Service Repair No - 18.30.30

Removal
1. Disconnect the battery ground cable.
2. Remove the supercharger.

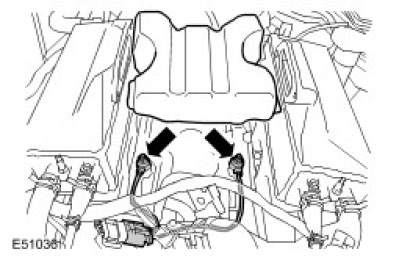

3. Remove the knock sensors (KS).
^ Disconnect the electrical connector.
^ Remove the NVH pad.
^ Remove the 2 bolts.





Installation
1. Install the KS.
^ Clean the component mating faces.
^ Tighten the bolts to 20 Nm (15 ft. lbs.).
^ Install the NVH pad.
^ Connect the electrical connector.

2. Install the supercharger.
3. Connect the battery ground cable.
