System Specifications

Cylinder Block
Bore - nominal 86 mm (3.386 inch)

Engine Data Locations

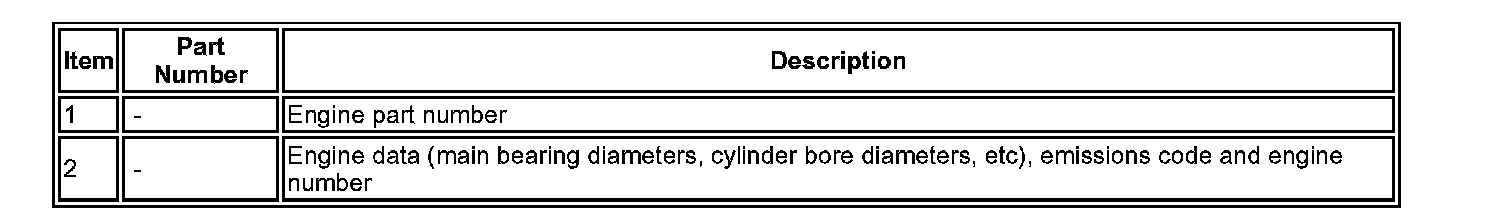

Engine Data Locations (Part 1):

Engine Data Locations (Part 2):

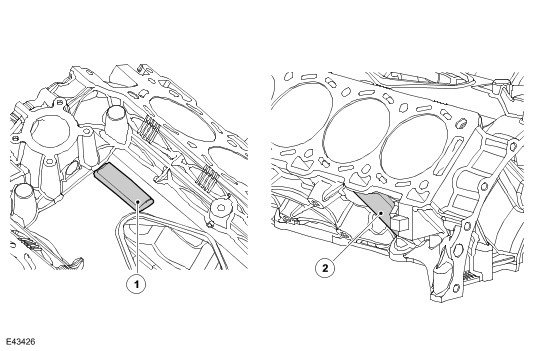

Engine data is marked at three locations, two on the cylinder block (shown) and one on the engine front cover, which consists a label displaying the engine number. Component diameters are represented by alphabetical and numerical codes.

Crankshaft Pulley Bolt
Torque* 380 Nm (280 ft. lbs).

*Discard the bolt.
