Anti-Lock Control - Traction Control - 3.0L (TD6) Diesel: Notes
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR CARS, INC.
|

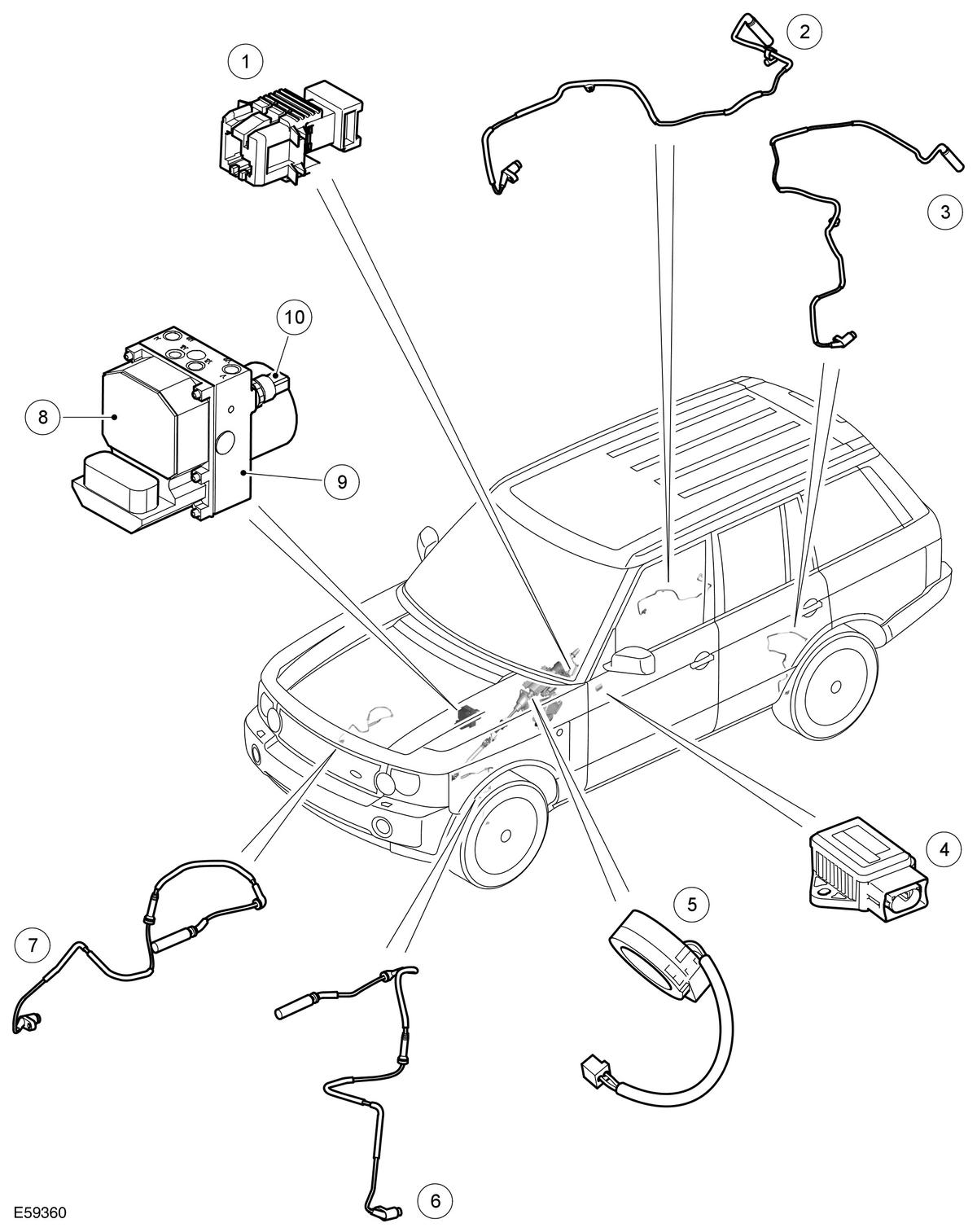

| Item Number |
Description |
| 1 |
Stoplamp switch |
| 2 |
Right rear wheel speed sensor |
| 3 |
Left rear wheel speed sensor |
| 4 |
Yaw rate and lateral acceleration sensor |
| 5 |
Steering angle sensor |
| 6 |
Front left wheel speed sensor |
| 7 |
Front right wheel speed sensor |
| 8 |
anti-lock brake system (ABS) module |
| 9 |
hydraulic control unit (HCU) |
| 10 |
Brake pressure sensor |
 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
HDC (hill descent control) information indicator |
| 2 |
Brake warning indicator |
| 3 |
ABS warning indicator |
| 4 |
HDC switch |
| 5 |
DSC (dynamic stability control) switch |
| 6 |
DSC warning indicator |
