Anti-Lock Brake System (Abs) Module (Vehicles With: Standard Brakes): Removal
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Make sure the ignition switch is in position 0.
NOTE:
The hydraulic control unit (HCU) mounted to the ABS module cannot be serviced separately. If the HCU requires replacement, then the ABS module must be replaced as a complete assembly.
- Raise and support the vehicle.
- Disconnect the battery ground cable. Refer to Specifications .

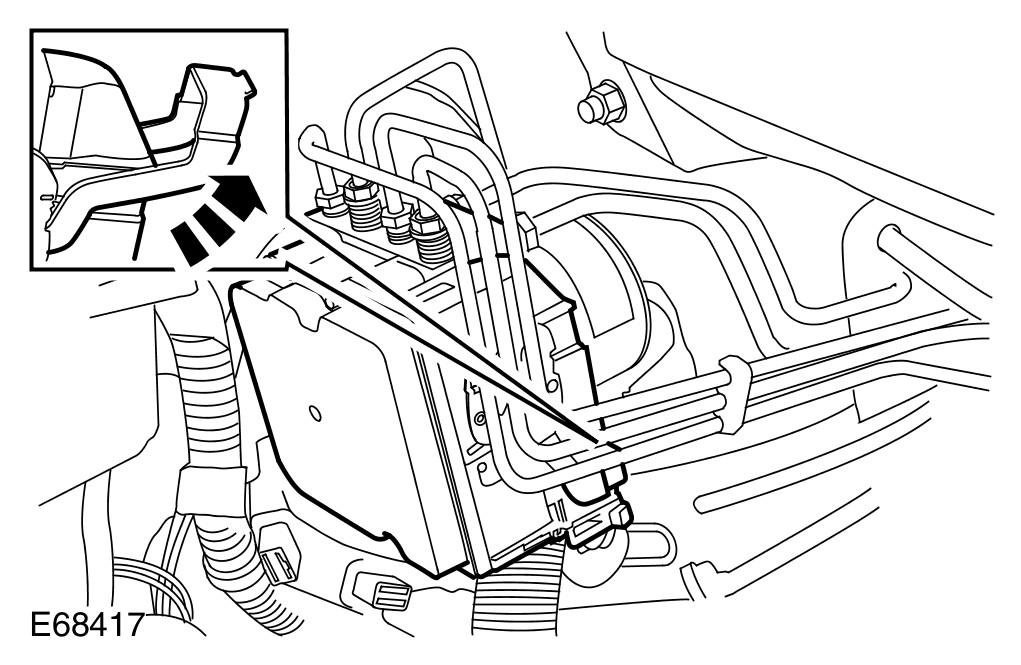

- Disconnect the electrical connector.
- Release the latch.
- Reposition the electrical connector.

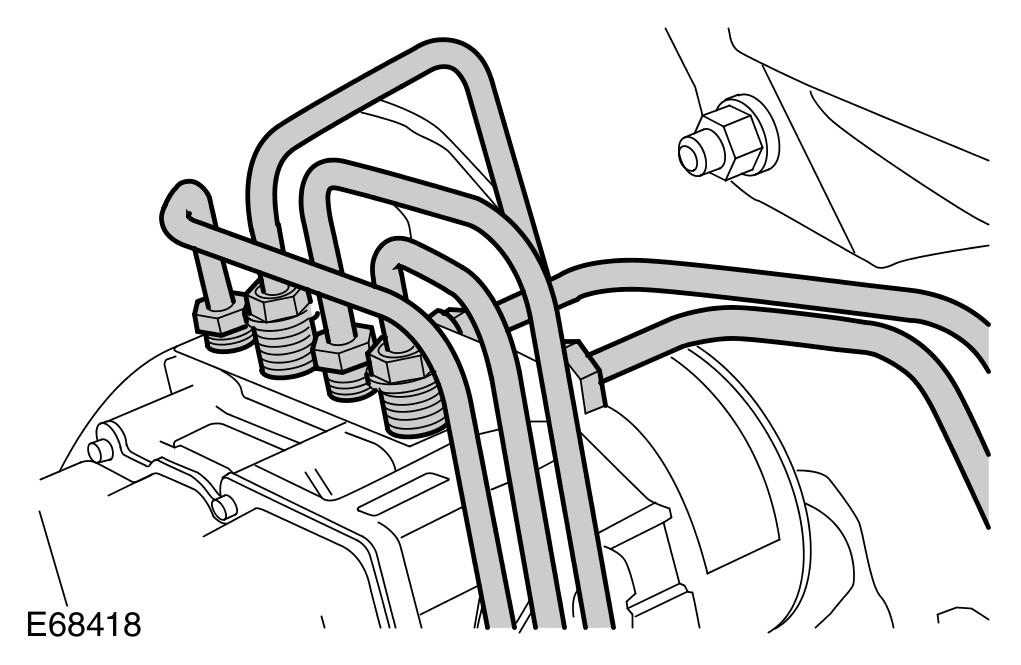

- Release the 6 brake fluid lines.
- Position an absorbent cloth to collect fluid spillage.
- Remove the ABS module.

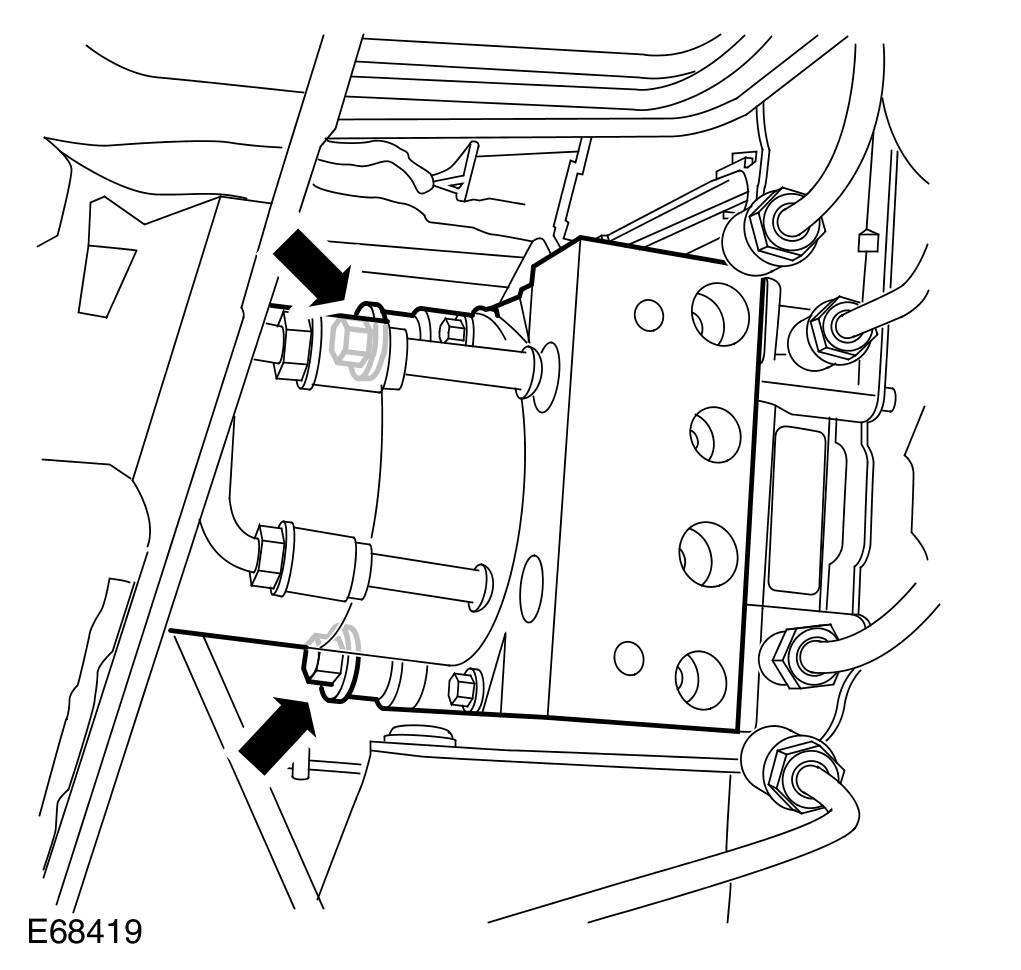

- Loosen but do not remove the 2 nuts.
- Release from the locating grommet.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
CAUTION:
Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.
NOTE:
Note the fitted position.
