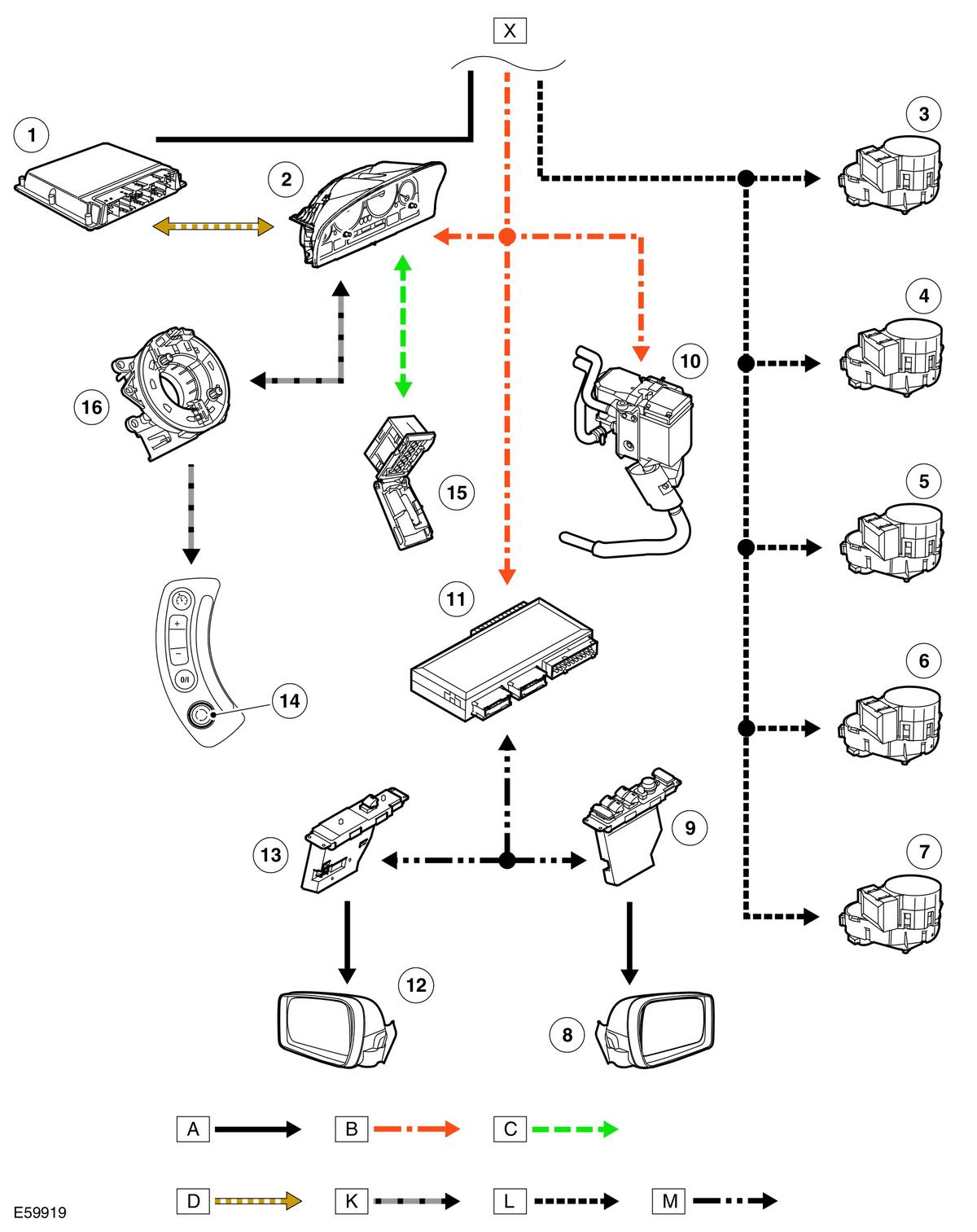

Control Diagram - Automatic System, Sheet 2 Of 2
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired connection; B = K bus; C = Diagnostic DS2 bus; D = High speed controller area network CAN bus; K = I bus; L = M bus; M = P bus
| Item Number | Description |
|---|---|
| 1 | ECM |
| 2 | Instrument cluster |
| 3 | Windshield distribution motor |
| 4 | Face level distribution motor |
| 5 | Footwell distribution motor |
| 6 | Rear face level temperature blend motor |
| 7 | Ram air motor |
| 8 | Driver door mirror |
| 9 | Driver door module |
| 10 | FFBH unit |
| 11 | GEM |
| 12 | Passenger door mirror |
| 13 | Passenger door module |
| 14 | Steering wheel recirculation switch (where fitted) |
| 15 | Diagnostic socket |
| 16 | Clockspring |
