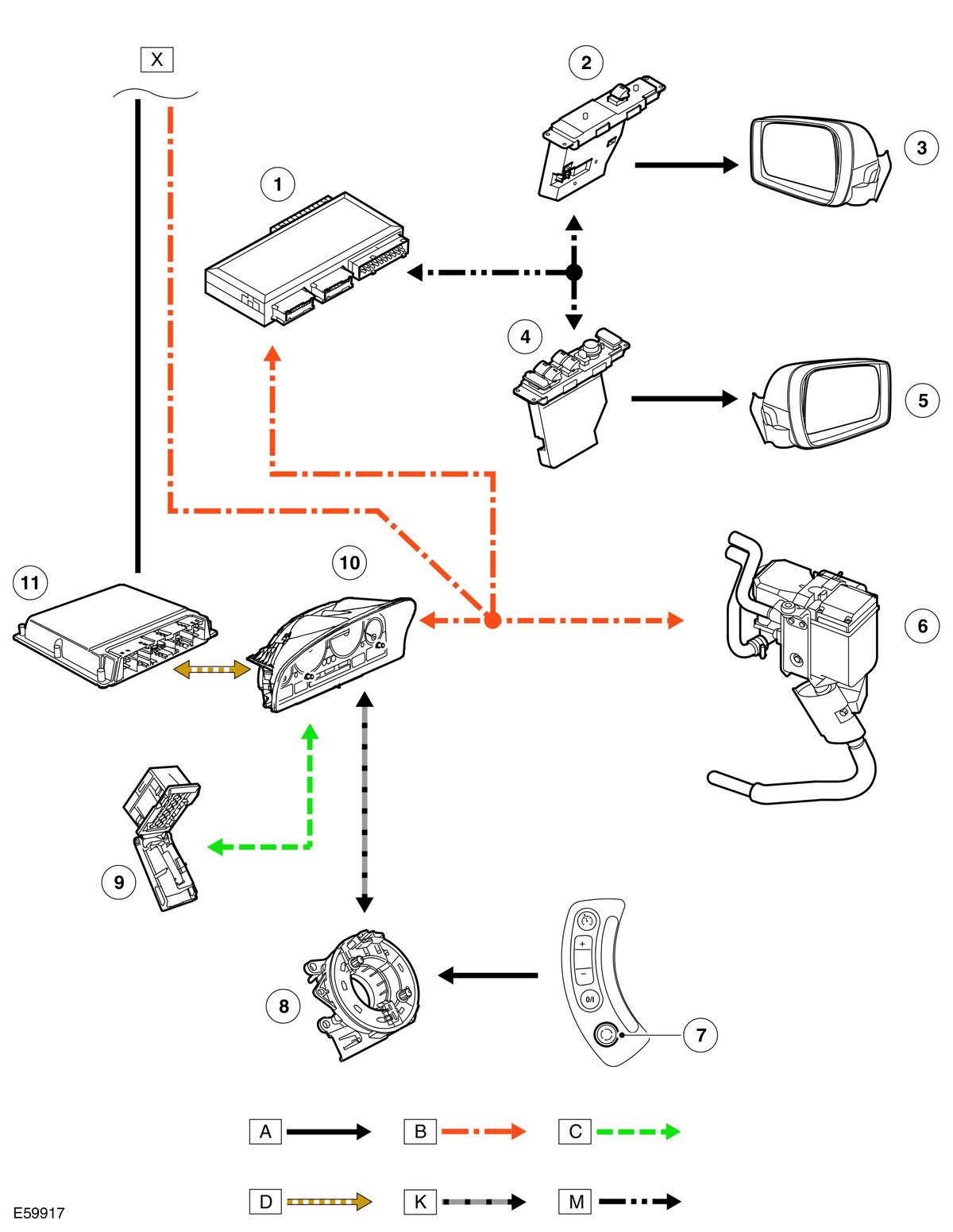

Control Diagram - Manual System, Sheet 2 Of 2
WARNING: This page is about a different car, the 2006 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired connection; B = K bus; C = Diagnostic DS2 bus; D = High speed controller area network CAN bus; K = I bus; M = P bus
| Item Number | Description |
|---|---|
| 1 | GEM |
| 2 | Passenger door module |
| 3 | Passenger door mirror |
| 4 | Driver door module |
| 5 | Driver door mirror |
| 6 | FFBH unit |
| 7 | Steering wheel recirculation switch (where fitted) |
| 8 | Clockspring |
| 9 | Diagnostic socket |
| 10 | Instrument cluster |
| 11 | ECM |
