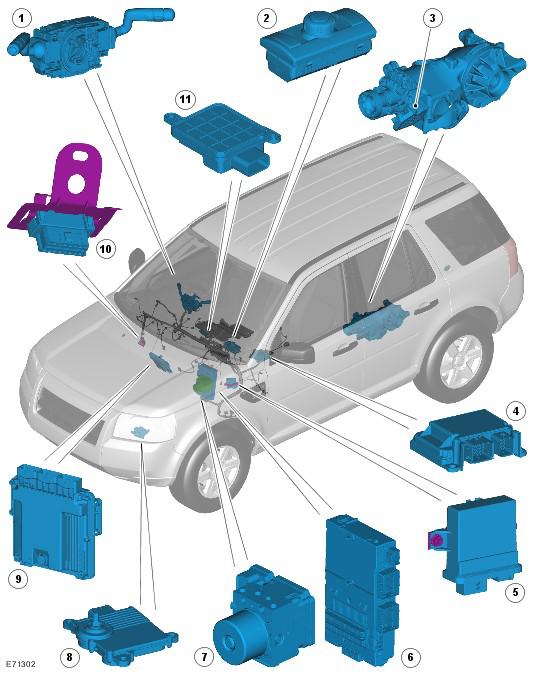

Component Location - High Speed Can Bus
| Item Number | Description |
|---|---|
| 1 | Steering angle sensor |
| 2 | Terrain Response control module |
| 3 | Electronic rear differential control module |
| 4 | Restraints Control Module (RCM) |
| 5 | Headlamp levelling control module |
| 6 | CJB |
| 7 | Anti-lock Brake System module |
| 8 | TCM |
| 9 | Engine Control Module (ECM) |
| 10 | Diagnostic socket |
| 11 | Occupant Classification Sensor (OCS) - NAS only |
