Home
>>
Land Rover
>>
2008
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Motor
>>
System Diagram
>>
Motor-Window-Rear-RH
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

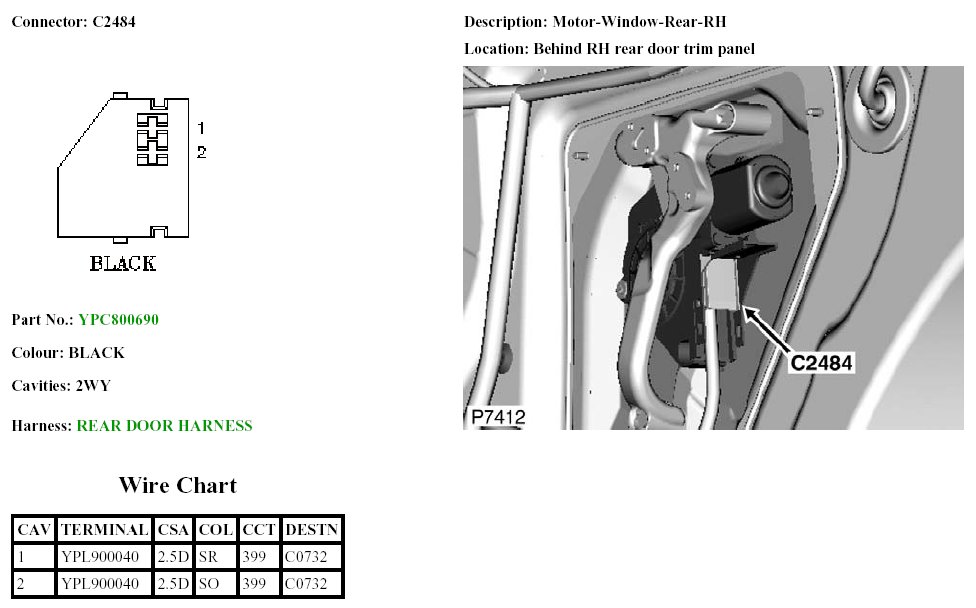

Motor-Window-Rear-RH
Motor-Window-Rear-RH
C2484:
