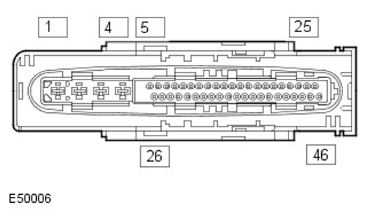

Abs Module Harness Connector C0506

ABS MODULE HARNESS CONNECTOR C0506 PIN DETAILS

Pin No.	Description	Input/Output
1	Ground	Output
2	Battery power supply	Input
3	Battery power supply	Input
4	Ground	Output
5	Front left wheel speed sensor signal	Input
6	Rear left wheel speed sensor power supply	Output
7	Rear right wheel speed sensor power supply	Output
8	Rear right wheel speed sensor signal	Input
9	Front right wheel speed sensor power supply	Output
10	Front right wheel speed sensor signal	Input
11 to 13	Not used	-
14	High speed CAN bus low	Input/Output
15	Yaw rate and lateral acceleration sensor ground	Input
16	Yaw rate signal	Input
17	Not used	-
18	Yaw rate and lateral acceleration sensor reference	Input
19	Not used	-
20	Lateral acceleration signal	Input
21	Not used	-
22	HDC relay	Output
23 to 25	Not used	-
26	Front left wheel speed sensor power supply	Output
27	Rear left wheel speed sensor signal	Input
28	Ignition power supply	Input
29	Not used	-
30	Stoplamp switch BLS contacts	Input
31	DSC switch	Input
32	Not used	-
33	Road speed signal	Output
34	Not used	-
35	High speed CAN bus high	Input/Output
36	HDC switch	Input
37	Yaw rate and lateral acceleration sensor test	Output
38 to 40	Not used	-
41	Stoplamp switch BS contacts	Input
42 to 46	Not used	-
