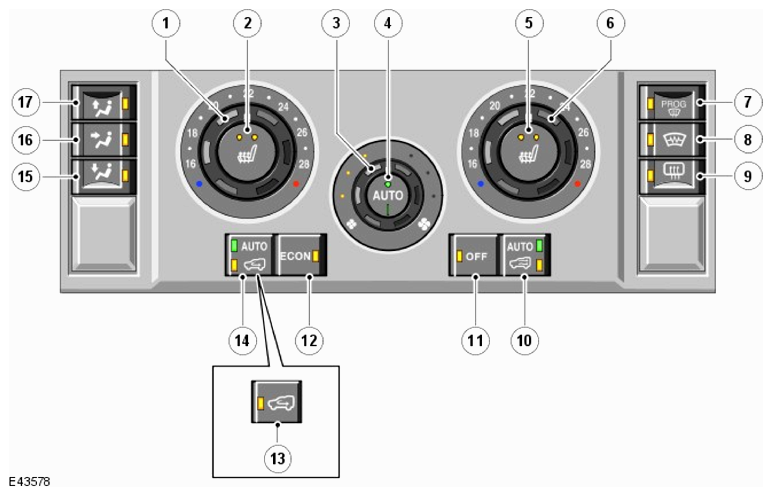

| 1 |
- |
LH temperature switch |
| 2 |
- |
LH front seat heater switch |
| 3 |
- |
Blower switch |
| 4 |
- |
Automatic mode switch |
| 5 |
- |
RH front seat heater switch |
| 6 |
- |
RH temperature switch |
| 7 |
- |
Programmed defrost switch |
| 8 |
- |
Windshield heater switch |
| 9 |
- |
Rear window heater switch |
| 10 |
- |
Auxiliary climate control switch |
| 11 |
- |
System off switch |
| 12 |
- |
Economy switch |
| 13 |
- |
Recirculation switch (models without pollution sensing) |
| 14 |
- |
Recirculation switch (models with pollution sensing) |
| 15 |
- |
Distribution switch - feet |
| 16 |
- |
Distribution switch - face |
| 17 |
- |
Distribution switch - windshield |
