Home >> Land Rover >> 2008 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank Unit

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

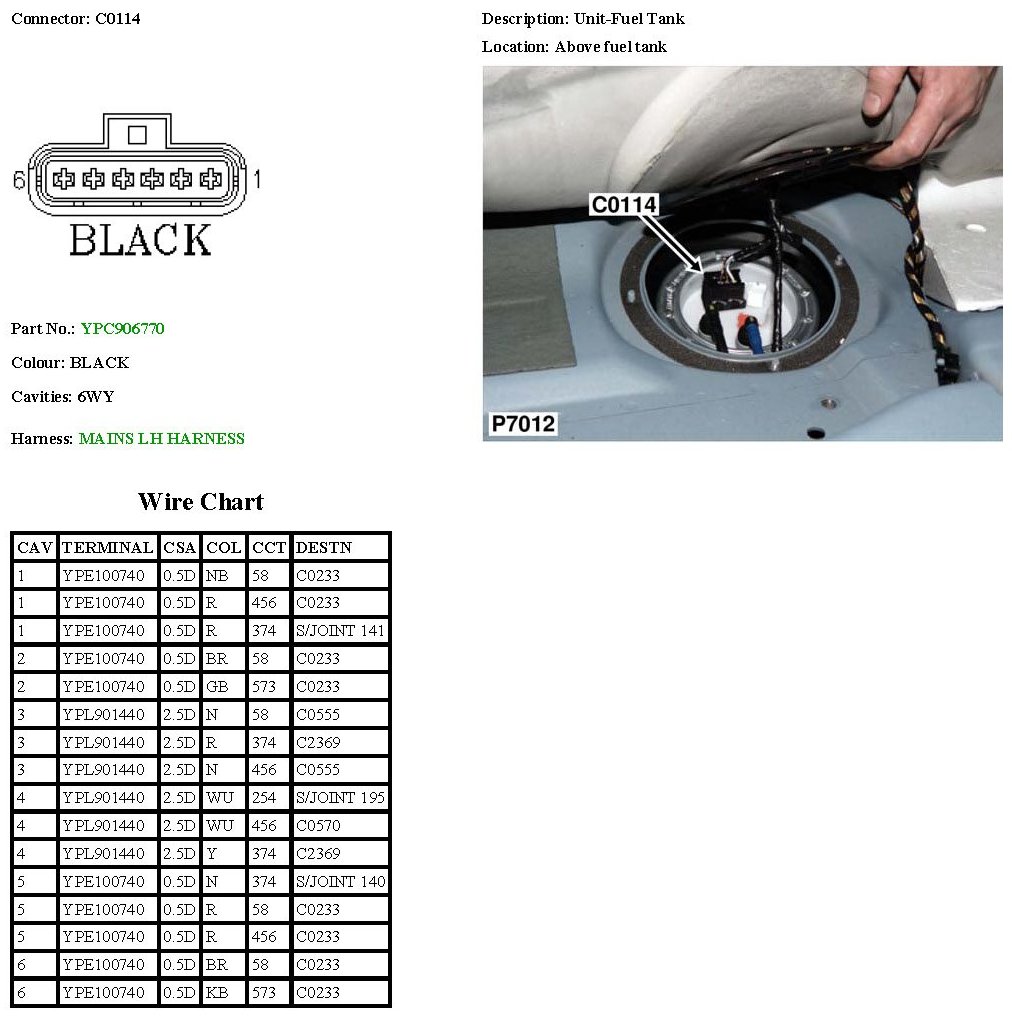

Fuel Tank Unit

C0114:
