Home
>>
Land Rover
>>
2009
>>
LR2 (LF) L6-3.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp Control Module
>>
Module-Lighting-Switch
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

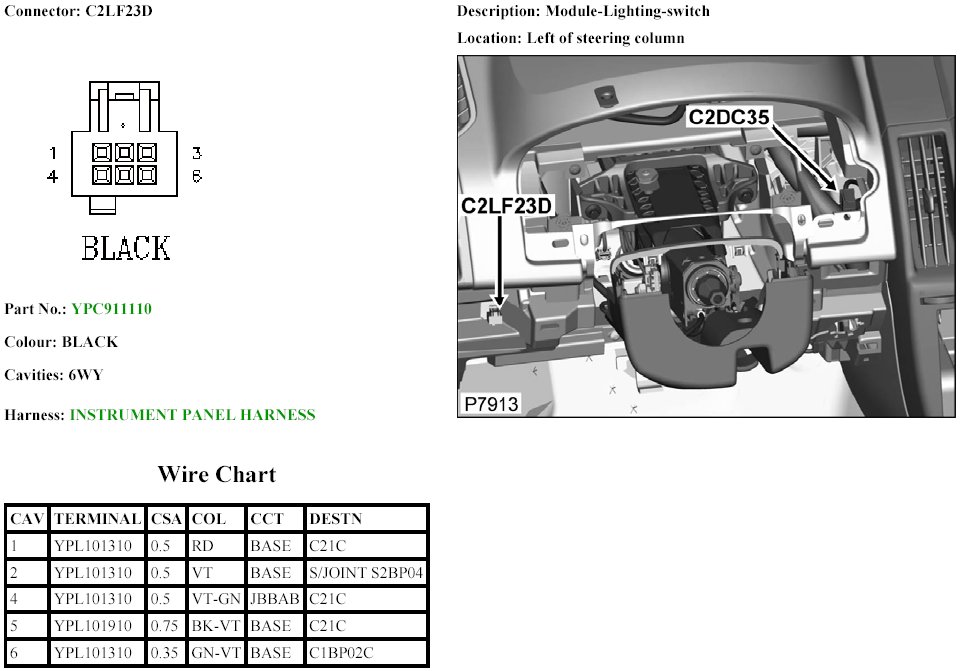

Module-Lighting-Switch
C2LF23D:
