Impact Sensor
>>
Sensor-Side Impact-Driver Side-Rear
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

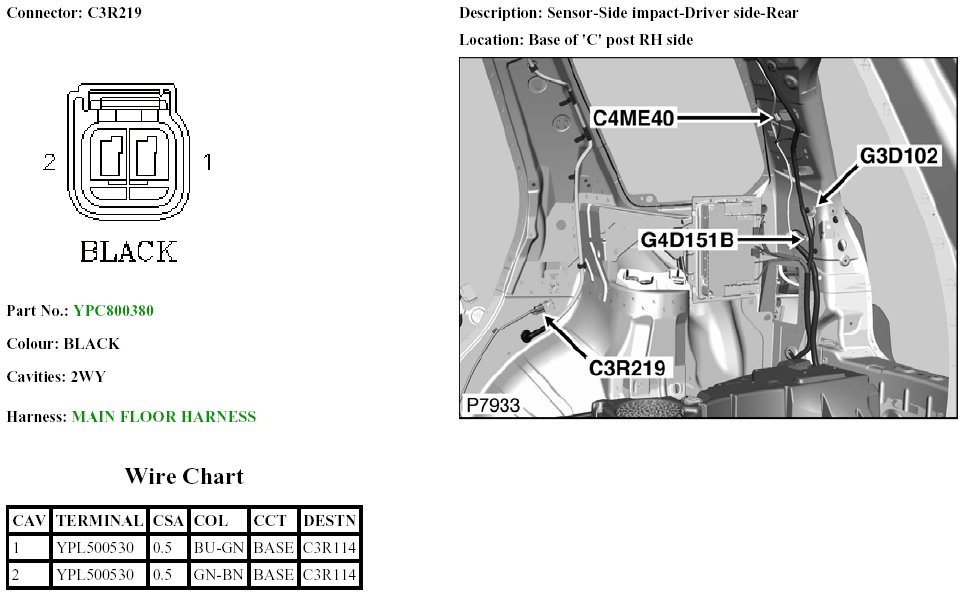

Sensor-Side Impact-Driver Side-Rear
C3R219:
