Home >> Land Rover >> 2009 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Communication Module >> Module-Steering Wheel

April 5, 2026: LEMON Manuals is launched! Read the announcement.

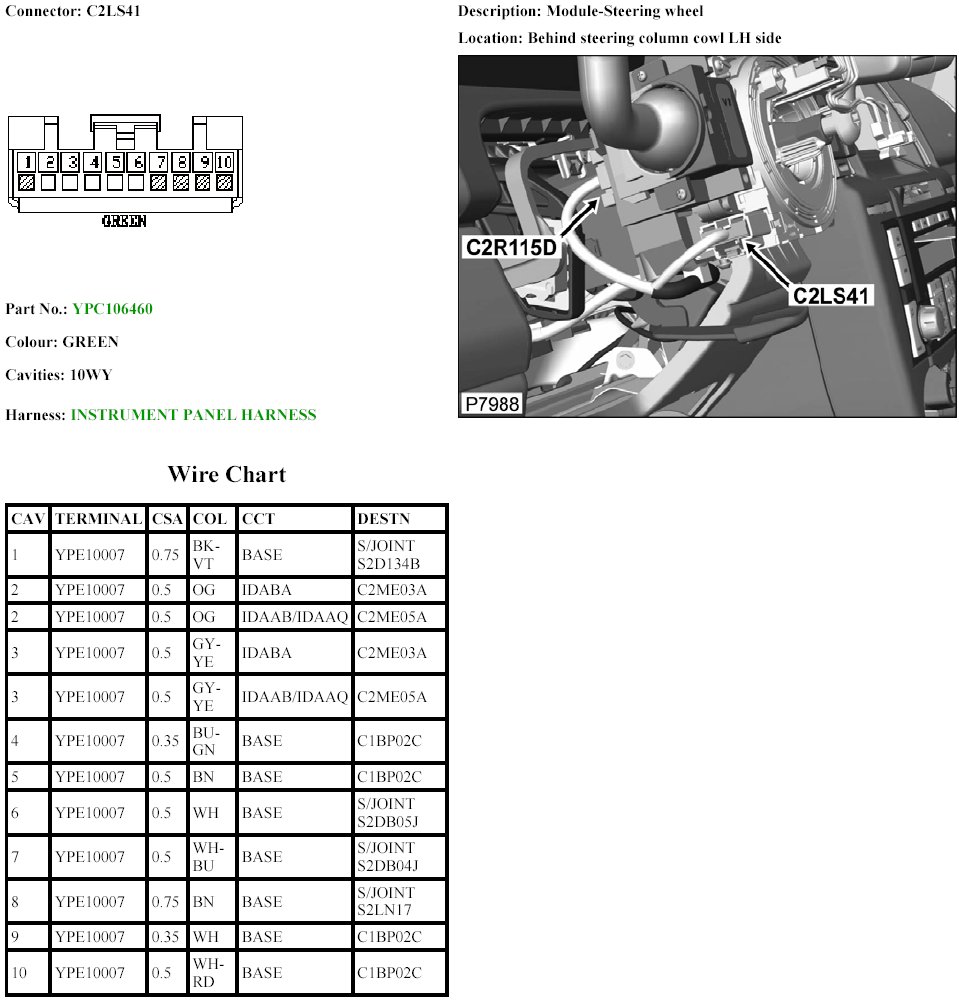

Module-Steering Wheel

C2LS41:
