Home
>>
Land Rover
>>
2009
>>
Range Rover (LM) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Unit, Differential Lock
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control Unit, Differential Lock

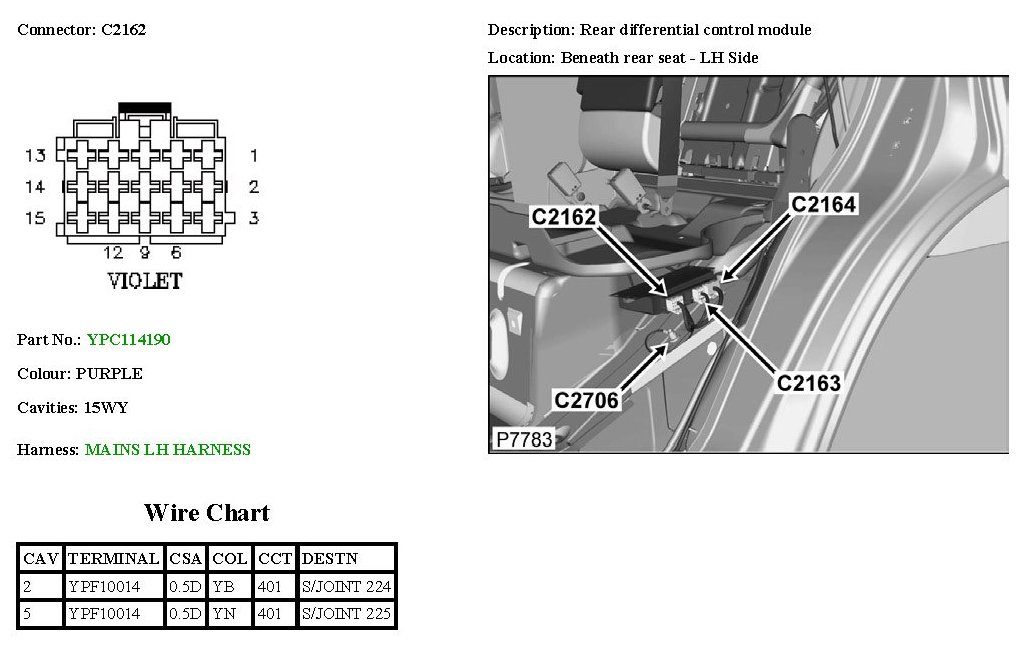

C2162:

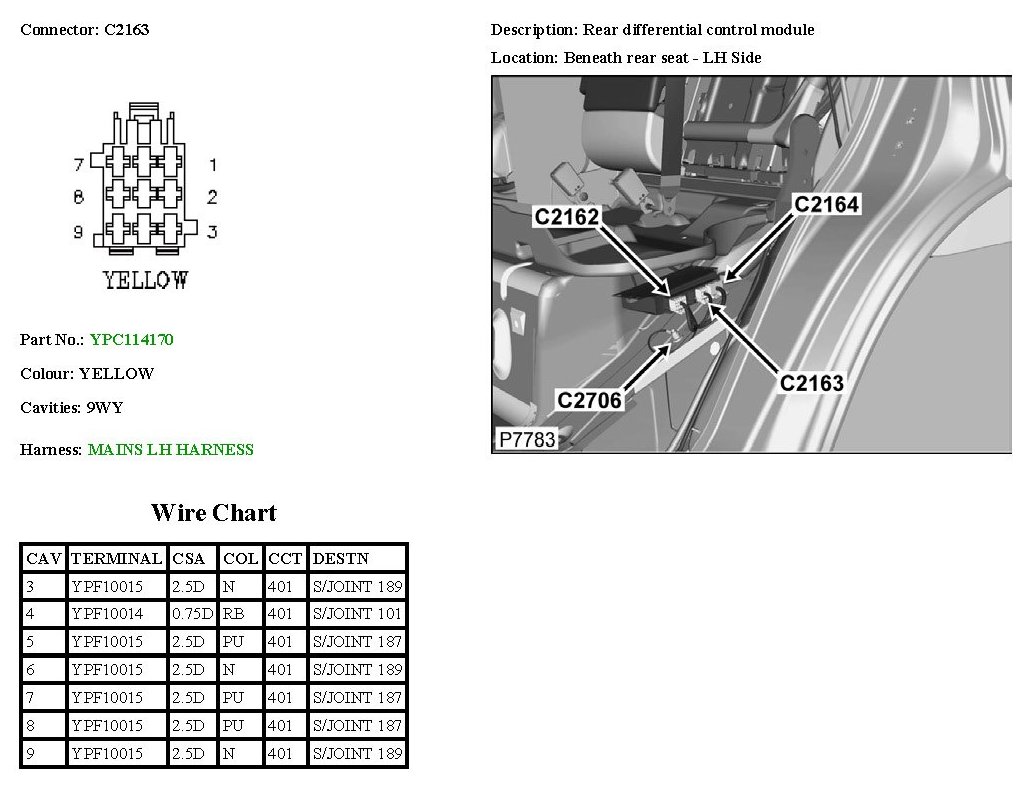

C2163:

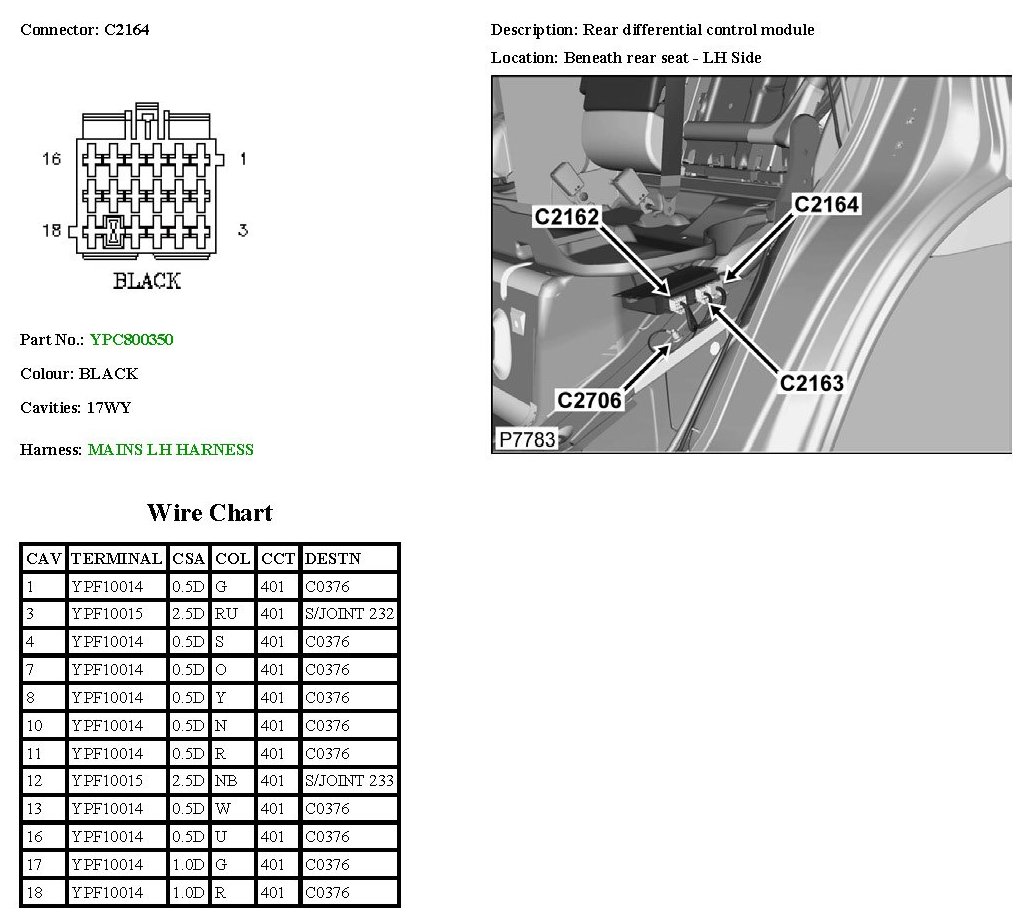

C2164:
