Impact Sensor
>>
Sensor-Front Impact-Driver Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

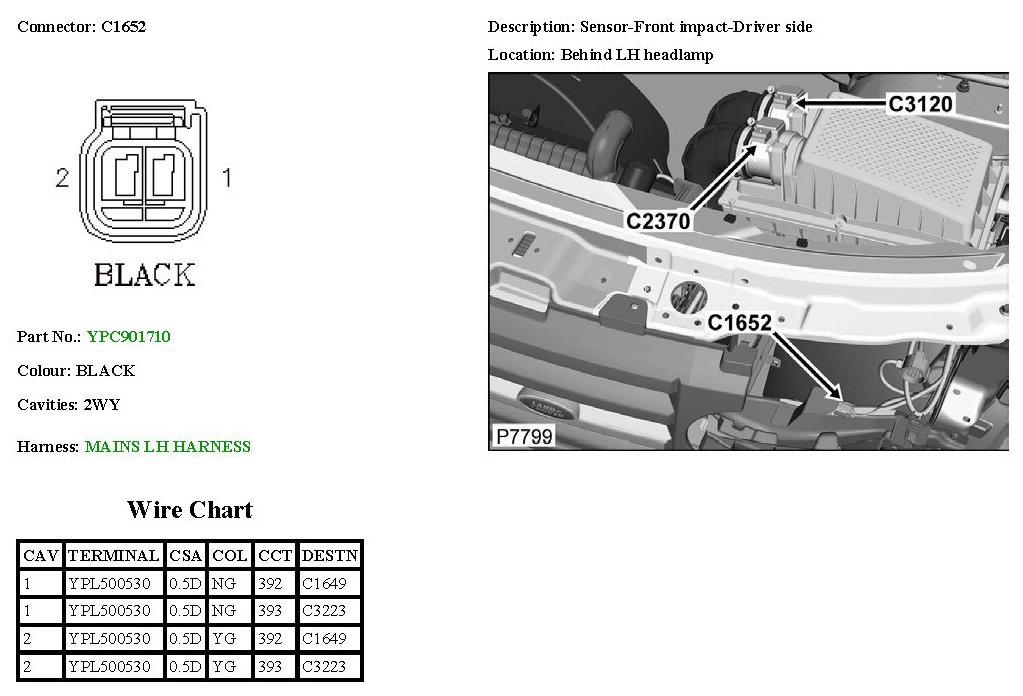

Sensor-Front Impact-Driver Side
C1652:
