Auxiliary Climate Control Assembly

Auxiliary Climate Control Assembly

Removal
1. Remove the rear passenger entertainment control panel assembly.

NOTE: Floor console shown removed for clarity.

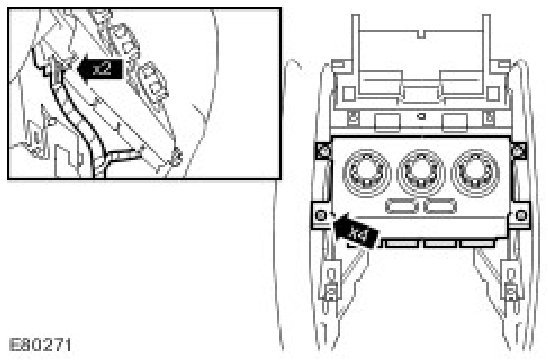

2. Remove the rear auxiliary climate control assembly.
- Remove the 4 screws.
- Disconnect the 2 electrical connectors.







Installation
1. Install the rear auxiliary climate control assembly.
- Connect the 2 electrical connectors.
- Install the 4 screws.

2. Install the rear passenger entertainment control panel assembly.
