Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor

Removal
1. Disconnect the battery ground cable.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Raise and support the vehicle.
3. Remove the engine undershield.

CAUTION: Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

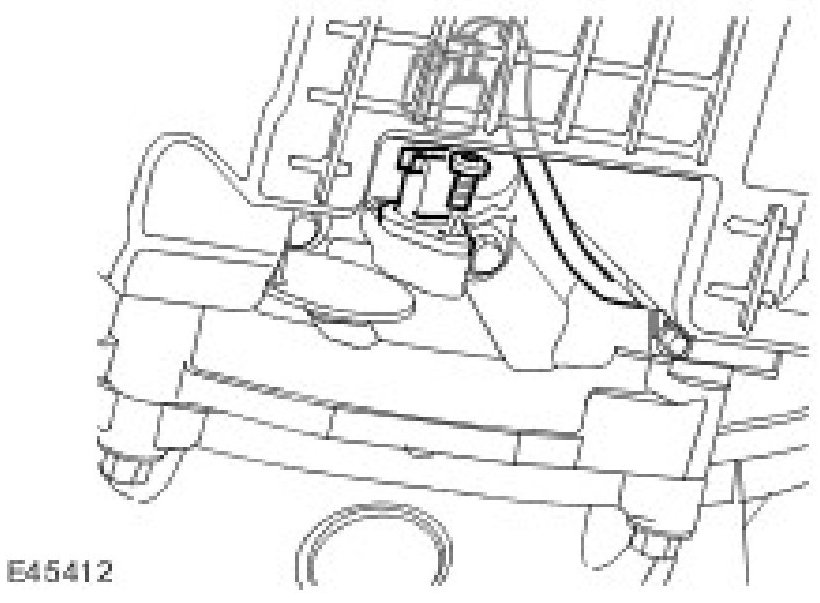

4. Remove the CKP sensor.
^ Disconnect the electrical connector.
^ Remove the Torx screw.





Installation
1. Install the CKP sensor.
^ Tighten the Torx screw to 8 Nm (6 ft. lbs.).
^ Connect the CKP sensor electrical connector.

2. Install the engine undershield.
3. Connect the battery ground cable.
