Computers and Control Systems: Locations



Electronic Engine Controls

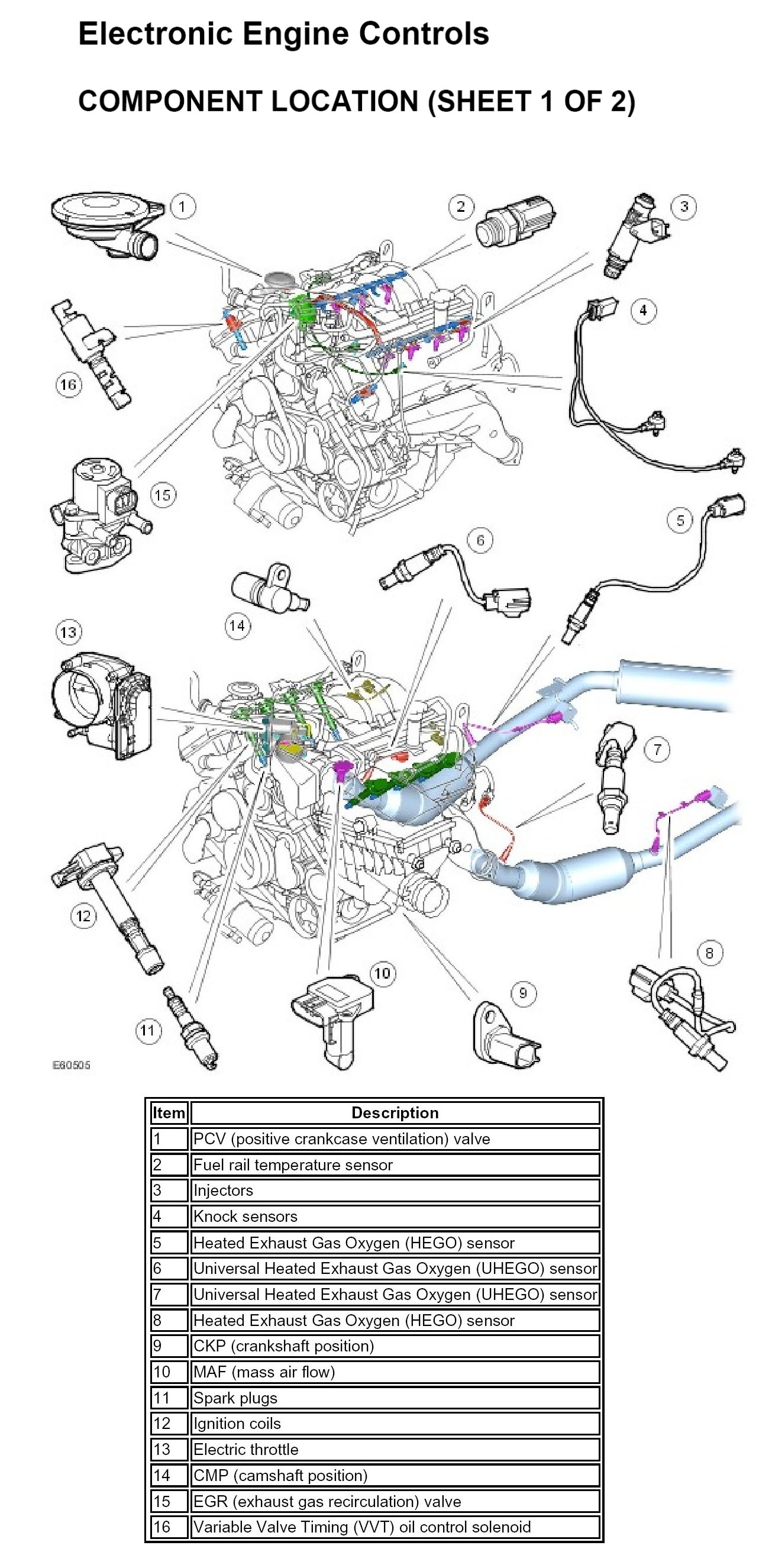

COMPONENT LOCATION (SHEET 1 OF 2)

Electronic Engine Controls - Component Location (Sheet 1 Of 2):

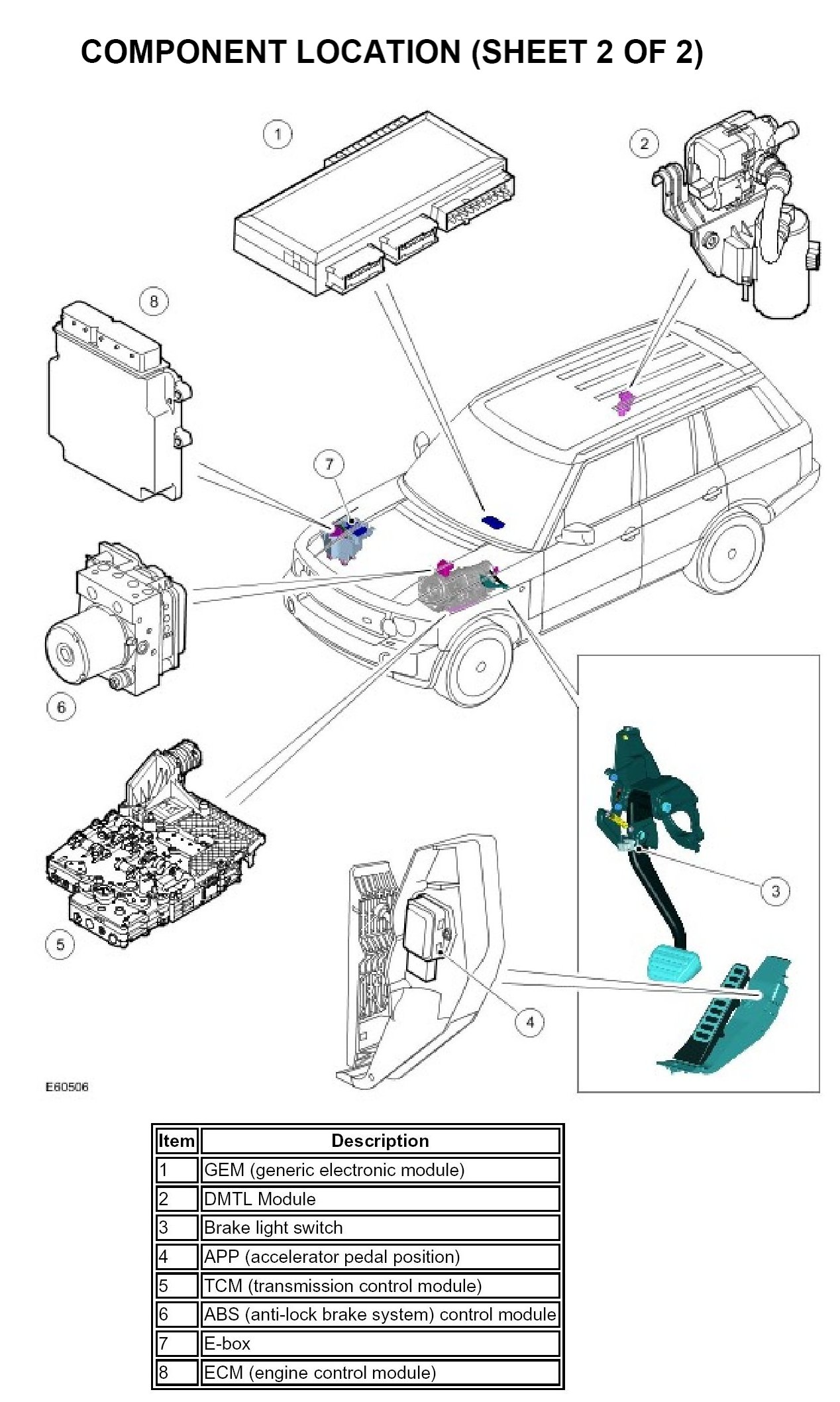

COMPONENT LOCATION (SHEET 2 OF 2)

Electronic Engine Controls - Component Location (Sheet 2 Of 2):
