Spark Plug: Service and Repair

Spark Plugs

Removal
1. Disconnect the battery ground cable.
2. Remove the ignition coil-on-plugs.
3. Remove the remaining ignition coil-on-plugs.
4. Clean the area surrounding the spark plugs.

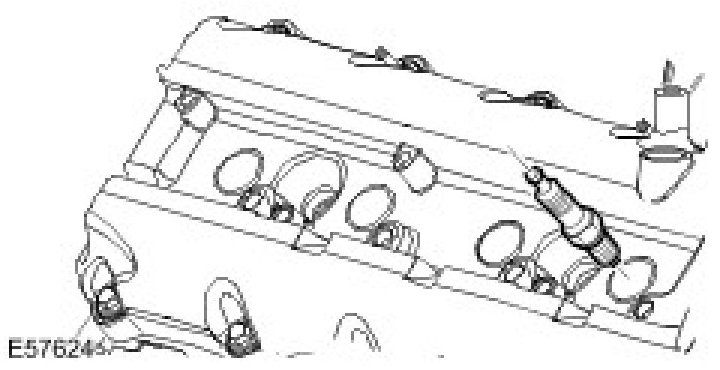

5. Remove the spark plugs.







Installation
1. Install the spark plugs.
^ Tighten the spark plugs to 25 Nm (18 ft. lbs.).

2. Install the ignition coil-on-plug.
3. Install the remaining coil-on-plugs.
4. Connect the battery ground cable.
