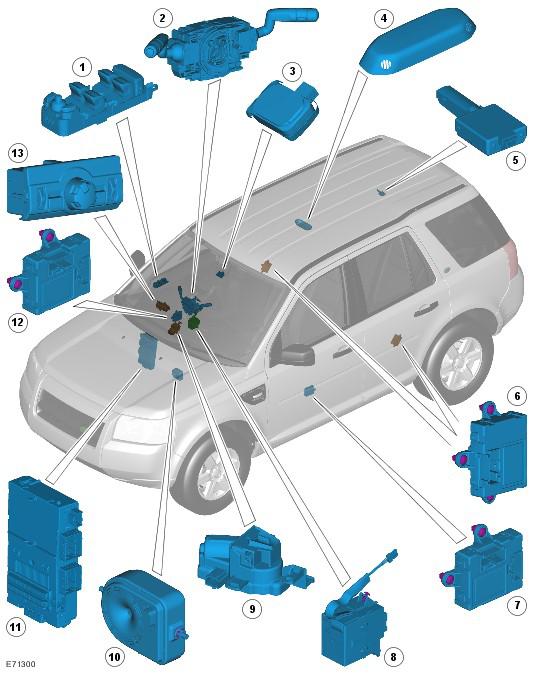

Component Location - Lin Bus (Sheet 1 Of 2)
| Item Number | Description |
|---|---|
| 1 | Driver's door switchpack |
| 2 | Steering wheel module |
| 3 | Rain sensor |
| 4 | Volumetric sensor |
| 5 | RF receiver |
| 6 | Left Hand (LH) / Right Hand (RH) rear door modules |
| 7 | Passenger door module |
| 8 | Start control module |
| 9 | Electronic steering column lock |
| 10 | Battery Backed-Up Sounder (BBUS) |
| 11 | Central Junction Box (CJB) |
| 12 | Driver's door module |
| 13 | Light switch module |
