Transmission Control Module (TCM)

Courtesy of JAGUAR CARS, INC.

The TCM is located on the top of the transmission casing and is connected on the high speed CAN bus to send and receive information to and from other system modules.

The TCM outputs signals to operate the transmission solenoid valves to control the hydraulic operation of the transmission.

The ECM supplies the engine management data on the high speed CAN bus system. The TCM requires engine data to efficiently control the transmission operation, using for example; crankshaft torque, engine speed, accelerator pedal angle, engine temperature etc.

The TCM processes signals from the transmission speed and temperature sensors, ECM and other vehicle systems. From the received signal inputs and pre-programmed data, the module calculates the correct gear, torque converter clutch setting and optimum pressure settings for gear shift and lock-up clutch control.

The steering angle sensor and the ABS module also supply data to the TCM on the high speed CAN bus system. The TCM uses data from these systems to suspend gear changes when the vehicle is cornering and/or the Anti-lock Brake System (ABS) module is controlling braking or traction control.

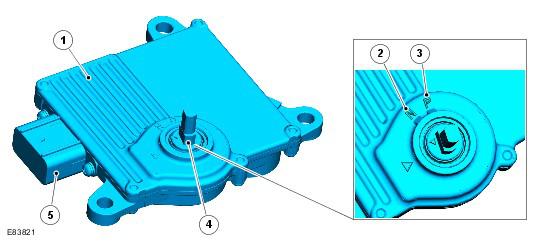

The TCM is positioned over the manual shaft which protrudes through an oil seal on the top face of the main casing. The shaft locates in a rotary position sensor and turns the sensor in the appropriate direction when a selection is made using the selector lever. The rotary position sensor is a Hall effect sensor which outputs a specified voltage relating to the selected selector lever position.

The selector lever is connected to the automatic transmission and the rotary position sensor in the transmission by a Bowden cable. Movement of the selector lever moves the position switch via the Bowden cable and the switch position informs the TCM of the selected position; P, R, N or D. The sport and manual +/- 'CommandShift™' switch passes sport or manual selections to the TCM on a Local Interconnect Network (LIN) bus. The TCM outputs appropriate information on the high speed CAN bus which is received by the instrument cluster to display the gear selection information in the message center.

If the TCM or transmission requires replacement, a setting procedure must be performed using a Land Rover approved diagnostic system to allow the TCM to learn the neutral position of the transmission. The TCM uses the neutral position as a reference point for each of the gear positions P, R, N and D.
