Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor

Removal

NOTE:
The CKP sensor is located on the LH side of the torque converter housing.
1 Disconnect the battery ground cable. For additional information, refer to Specifications Service and Repair
2
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
3 Remove the exhaust system. For additional information, refer to Exhaust System Service and Repair




4
CAUTION: Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

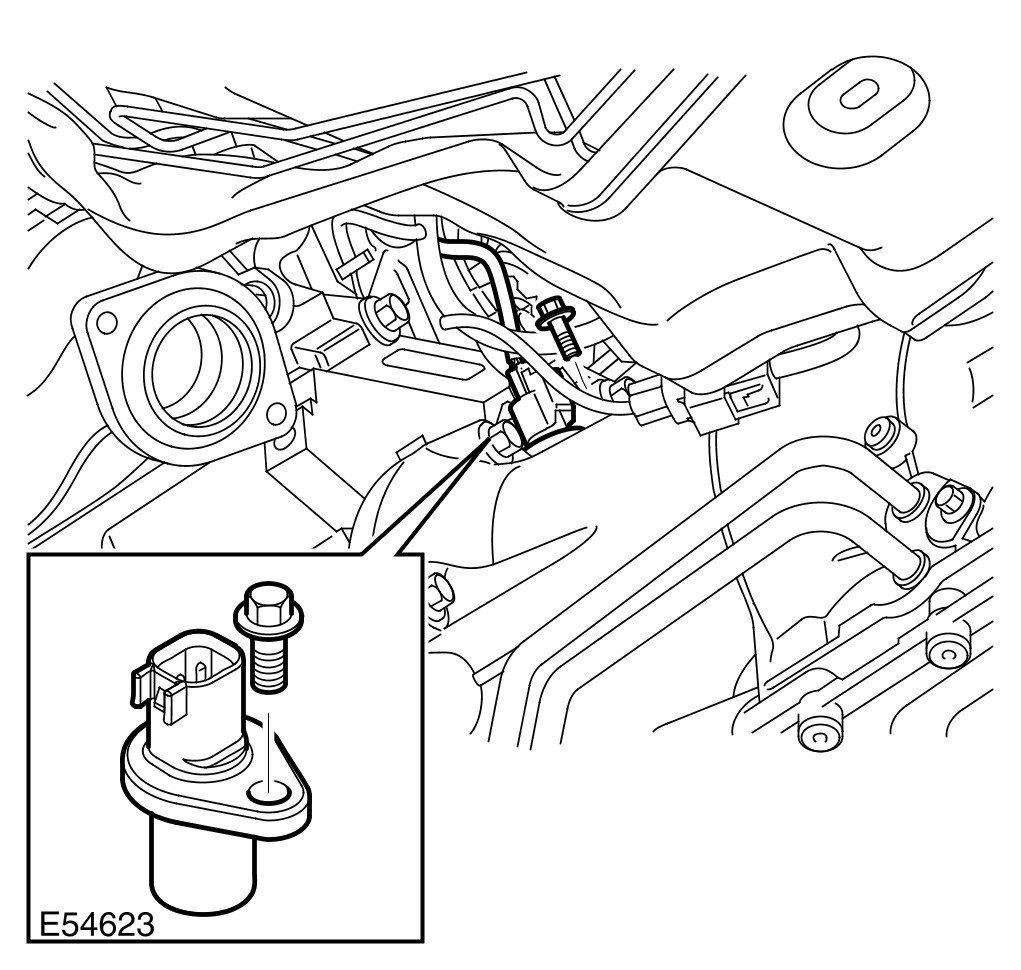

Remove the CKP sensor.
- Disconnect the electrical connector.
- Remove the bolt.

Installation
1 To install, reverse the removal procedure.
- Clean the component mating faces.
- Tighten the Torx screw to 8 Nm (6 lb.ft).
2 Install the exhaust system. For additional information, refer to Exhaust System Service and Repair
3 Connect the battery ground cable. For additional information, refer to Specifications Service and Repair
4 Using the approved diagnostic equipment, clear the powertrain control module (PCM) adaptations.
