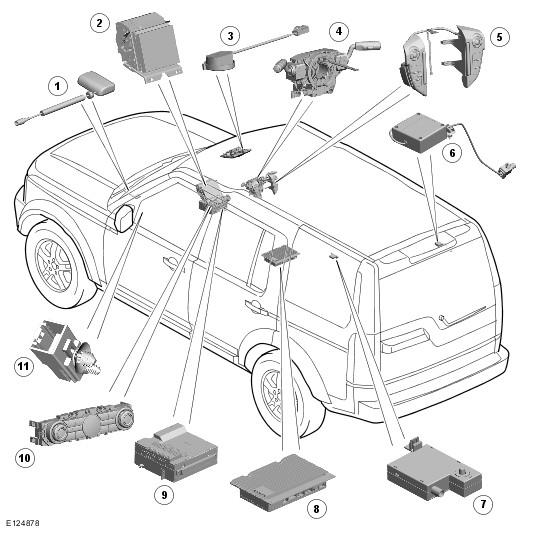

Component Location
| Item Number | Description |
|---|---|
| 1 | VICS (vehicle information and communication system) beacon antenna - Japan only |
| 2 | TSD (touch screen display) |
| 3 | Microphone - voice recognition |
| 4 | Clockspring |
| 5 | Steering wheel switches |
| 6 | GPS (global positioning system) antenna |
| 7 | 'TMC (traffic message channel) tuner' or 'VICS receiver - Japan only' |
| 8 | Power amplifier |
| 9 | IHU (integrated head unit) |
| 10 | Integrated control panel, incorporating navigation switch |
| 11 | Navigation update socket |
