Driver Air Bag Module: Removal
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
It is imperative that before any work is undertaken on the SRS system, the appropriate information is read thoroughly.
WARNING:
Always disconnect both battery cables before beginning work on the SRS system. Disconnect the ground cable first. Never reverse connect the battery.
NOTE:
If the SRS component is to be replaced, the bar code of the new unit must be recorded.
- Disconnect the battery ground cable. Refer to Specifications article.
- Make the SRS system safe. Refer to Standard Workshop Practices article.
- Remove the driver air bag module.

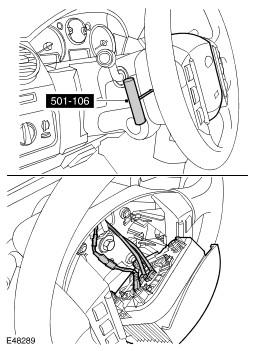

- Using the special tool, release the clip.
- Repeat the above procedure for the other side.
- Disconnect the ground cable.
- Release the clips and disconnect the 2 electrical connectors.
