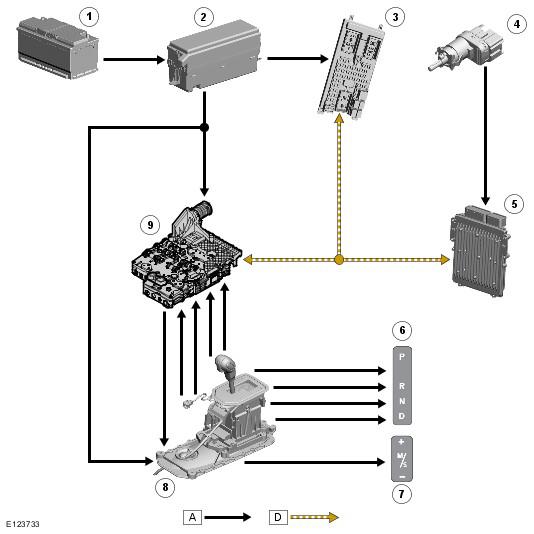

Control Diagram
WARNING: This page is about a different car, the 2013 Land Rover LR4, 2012 Land Rover LR4, 2011 Land Rover LR4, and 2010 Land Rover LR4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A = Hardwired; D = High speed controller area network (CAN) bus.
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | EJB (engine junction box) (50 A megafuse) |
| 3 | CJB (central junction box) (ignition relay) |
| 4 | Stoplamp switch |
| 5 | ECM (engine control module) |
| 6 | Selector lever position display |
| 7 | M/S display |
| 8 | Selector lever assembly |
| 9 | TCM/Mechatronic valve block |
