Mode 6 Data

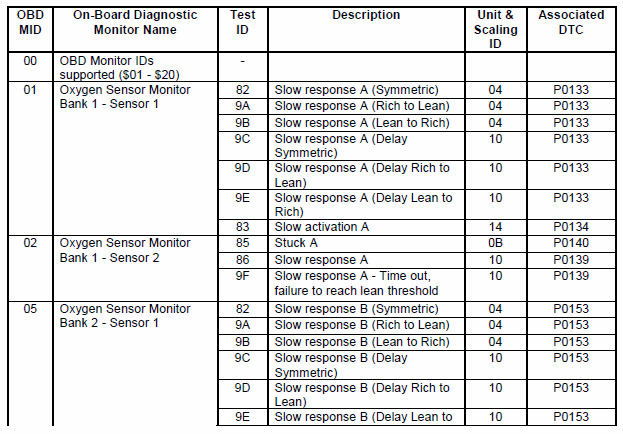

Fig 1: Mode 6 Data (1 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

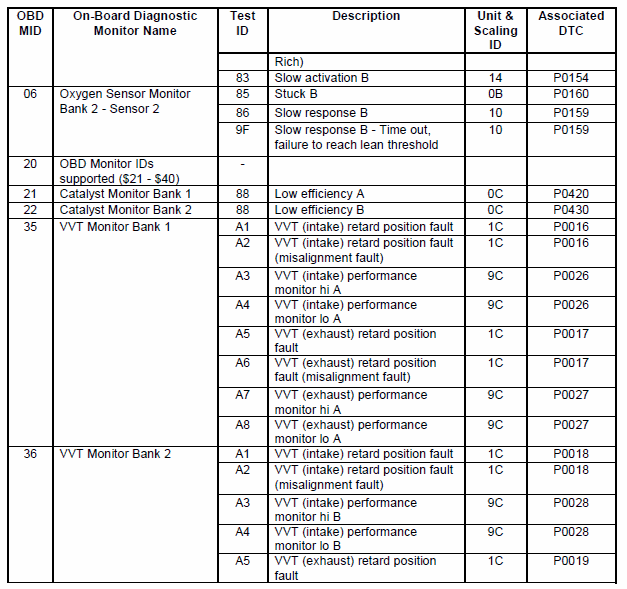

Fig 2: Mode 6 Data (2 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

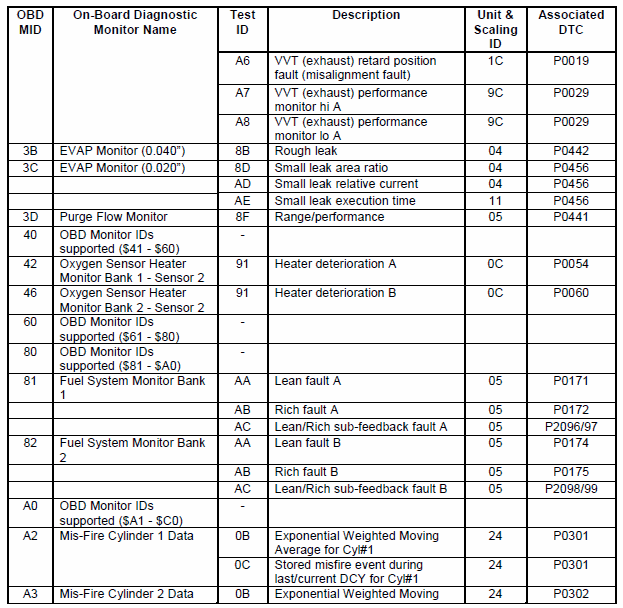

Fig 3: Mode 6 Data (3 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

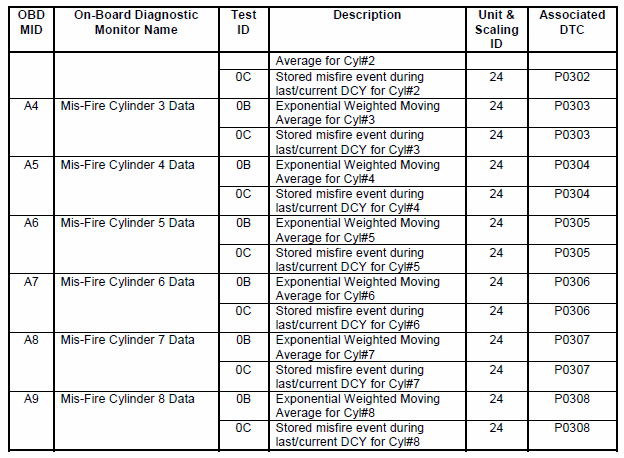

Fig 4: Mode 6 Data (4 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.
