Home >> Land Rover >> 2012 >> LR2 (LF) L6-3.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Mounted Controls Communication Module >> C2LS41 Module-Steering Wheel
April 5, 2026: LEMON Manuals is launched! Read the announcement.

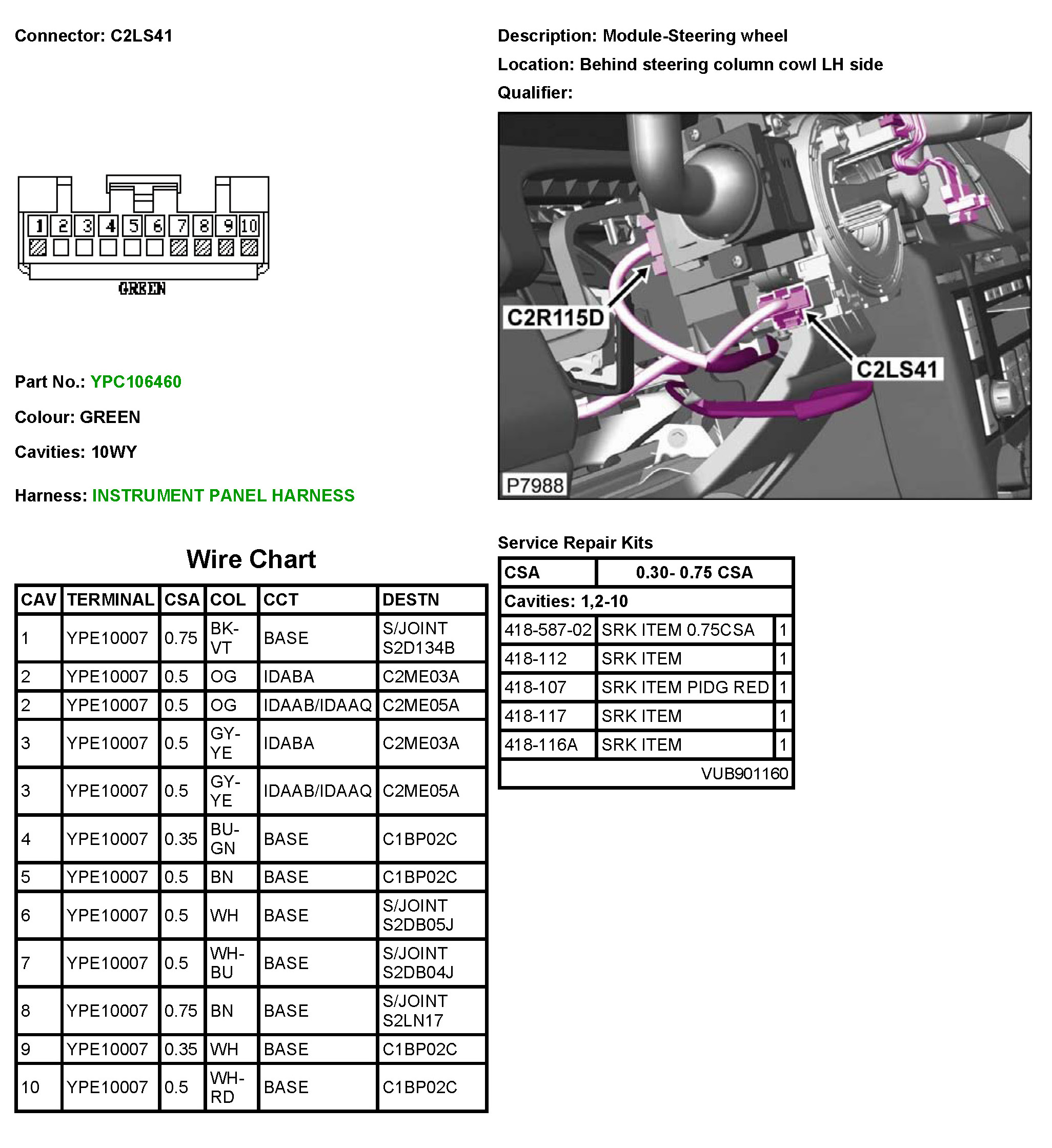

C2LS41 Module-Steering Wheel



C2LS41
