Front Disc Brake: Notes
WARNING: This page is about a different car, the 2012 Land Rover Range Rover Sport and 2011 Land Rover Range Rover Sport. However, it is still accessible from the selected car via links, so may be relevant.

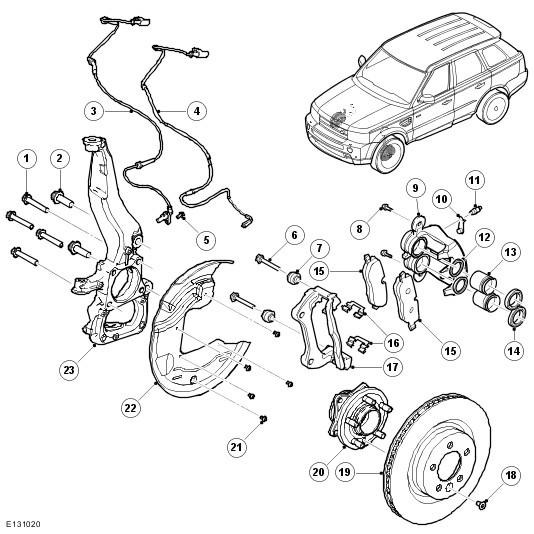

 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Hub bearing assembly bolt (x 4) |
| 2 |
Caliper bolt (x 2) |
| 3 |
Wheel speed sensor |
| 4 |
Brake pad wear sensor lead |
| 5 |
Wheel speed sensor bolt |
| 6 |
Guide pin (x 2) |
| 7 |
Guide pin dust cover (x 2) |
| 8 |
Guide pin bolt (x 2) |
| 9 |
Caliper body |
| 10 |
Bleed screw dust cap |
| 11 |
Bleed screw |
| 12 |
Piston seal (x 2) |
| 13 |
Piston (x 2) |
| 14 |
Piston dust cover (x 2) |
| 15 |
Brake pad |
| 16 |
Brake pad retainers |
| 17 |
Caliper carrier |
| 18 |
Brake disc retaining bolt |
| 19 |
Brake disc |
| 20 |
Hub bearing assembly |
| 21 |
Dust shield screw (x 5) |
| 22 |
Dust shield |
| 23 |
Front knuckle |

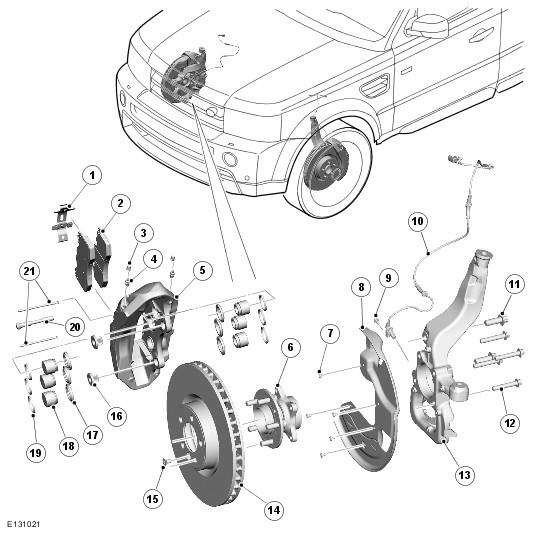

 Courtesy of JAGUAR CARS, INC.
|
| Item Number |
Description |
| 1 |
Brake pad retainer |
| 2 |
Brake pad |
| 3 |
Bleed screw dust cap (x 2) |
| 4 |
Bleed screw (x 2) |
| 5 |
Caliper body |
| 6 |
Hub bearing assembly |
| 7 |
Dust shield screw (x 5) |
| 8 |
Dust shield |
| 9 |
Wheel speed sensor bolt |
| 10 |
Wheel speed sensor |
| 11 |
Caliper retaining bolt (x 2) |
| 12 |
Hub bearing assembly bolt (x 4) |
| 13 |
Front knuckle |
| 14 |
Brake disc |
| 15 |
Brake disc retaining bolt |
| 16 |
Caliper thread insert (x 2) |
| 17 |
Piston dust cover (x 6) |
| 18 |
Piston (x 6) |
| 19 |
Piston seal (x 6) |
| 20 |
Caliper bridge bolt |
| 21 |
Brake pad retaining pins (x 2) |
