Front Differential Assembly: Notes

Courtesy of JAGUAR CARS, INC.

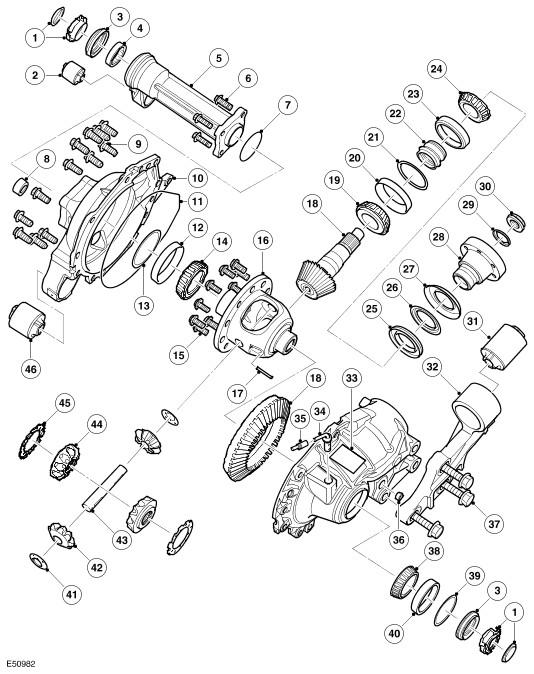

The casing comprises two halves with machined mating faces. When assembled, the cast iron casing halves are sealed with a thin film of Loctite 5999 sealant and secured together with fourteen bolts. A breather tube is fitted to the casings. This allows a plastic tube to be fitted and routed to a high point in the engine compartment, preventing the ingress of water when the vehicle is wading.

The RH casing is fitted with a drain plug. The front differential unit contains approximately 0.7 liter of oil for a dry fill.

The differential is a conventional design using a hypoid gear layout. This employs a hypoid bevel pinion gear and crown wheel, with the pinion offset above the centre line of the crown wheel. This design allows for a larger pinion gear to be used, which has the advantages of increased gear strength and reduced operating noise.

The front differential is available in two ratios. V8 petrol engine vehicles use a front differential with a final drive ratio of 3.73:1 and TdV6 diesel engine vehicles use a final drive ratio of 3.54:1. Changing the number of teeth between the crown-wheel drive gear and pinion gear changes the ratio.

The differential comprises a pinion shaft and hypoid bevel gear, a crown wheel drive gear with an integral cage, which houses two planet gears. Two sunwheels are also located in the cage and pass the rotational drive to the drive shaft shafts.

The pinion shaft is mounted on two opposed taper roller bearings with a collapsible spacer located between them. The spacer is used to hold the bearings in alignment and also collapses under the pressure applied to the pinion nut. This allows the nut to be tightened to a predetermined torque, which collapses the spacer, setting the correct bearing preload.

The pinion shaft has an externally splined outer end which accepts and locates the input flange, which is retained by the pinion nut. The opposite end of the output flange has an internal spline which provides positive location for the front propeller shaft. The flange has an external O-ring seal, which seals against the front propeller shaft shroud preventing the ingress of dirt and moisture into the splines. An oil seal is pressed into the LH casing and seals the input flange to the differential unit. The pinion shaft has a hypoid bevel gear at its inner end which mates with the crown wheel drive gear.

The crown wheel drive gear is located on the carrier and secured with ten bolts. The carrier is mounted on taper roller bearings located in each casing half. The bearings are press fitted into the casing and a spacer is located on the outside face to set backlash and apply preload to the bearing.

The carrier is fitted with a shaft onto which the two planet gears are mounted. The shaft is secured in the carrier with a roll pin. The sunwheels are located in pockets within the carrier and mesh with the planet gears. Thrust washers are located between the carrier and the sunwheels and hold the sunwheels in mesh with the planet gears. Each sunwheel has a machined, splined, bore to accept the drive shaft. A groove is machined in the bore to locate the snap ring fitted to the drive shaft, providing positive drive shaft location.
