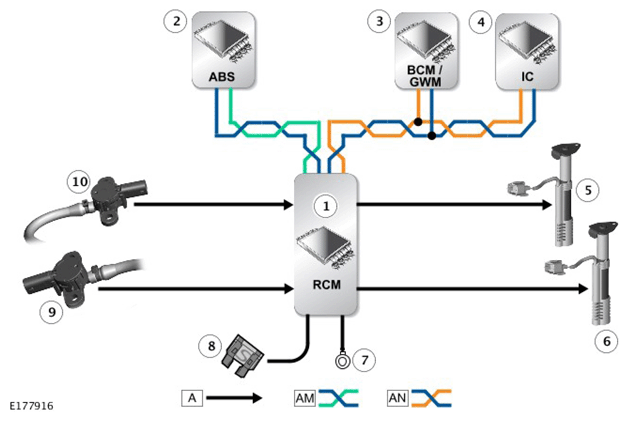

Control Diagram
WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS BUS; AN = HS CAN POWERTRAIN BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Anti-Lock Brake System (ABS) control module |
| 3 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 4 | Instrument Cluster (IC) |
| 5 | Right hood deployment control |
| 6 | Left hood deployment control |
| 7 | Ground |
| 8 | Power supply |
| 9 | Left front pressure sensor |
| 10 | Right front pressure sensor |
