Adaptive Speed Control Radar Sensor: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

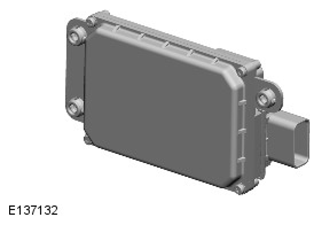

The adaptive speed control radar sensor is located in the front bumper, in a central position behind a flat cover.

If a front licence/number/tag plate is fitted, it must not be positioned so that it interferes with the radar beam. If the lower edge of the plate intrudes into the lower grill opening, then it will interfere with the radar beam.

The sensor is connected to other vehicle systems via the high speed CAN bus. If the unit is replaced in service, the unit must be realigned vertically. Horizontal alignment is achieved by putting the sensor in service mode using an approved Jaguar diagnostic system.

The vehicle is then driven for a short period while the sensor calibrates itself. Calibration is complete when the 'follow' icon in the instrument cluster stops flashing.
