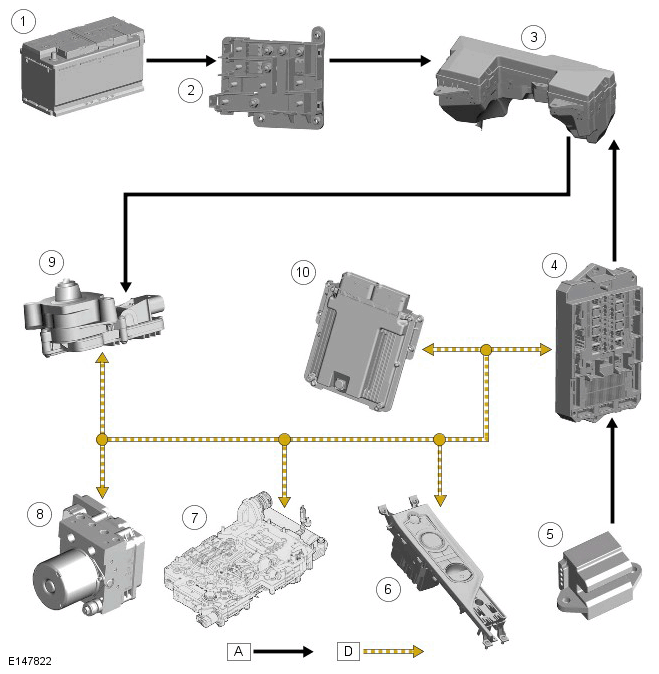

Control Diagram
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired; D
= High speed Can bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Engine Junction Box (EJB) |
| 4 | Central Junction Box (CJB) |
| 5 | Steering Angle Sensor Module (SASM) |
| 6 | Transmission Control Switch (TCS) and JaguarDrive switches |
| 7 | Transmission Control Module (TCM) |
| 8 | Anti-lock Brake System (ABS) control module |
| 9 | Transfer Case Control Module (TCCM) |
| 10 | Engine Control module (ECM) |
