Transfer Case Control Module (G1677435): Removal

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If a new component is to be installed, connect the approved diagnostic equipment prior to removal, the adaptive parameter data must then be downloaded. This data will be lost during removal and is required for component configuration on installation.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transfer case removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Connect the approved diagnostic equipment to obtain any fault code data (or) any diagnostic trouble codes (DTC's).
  2. Remove the battery ground cable.

    Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

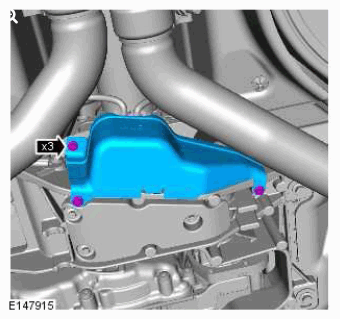

  5. G11423822

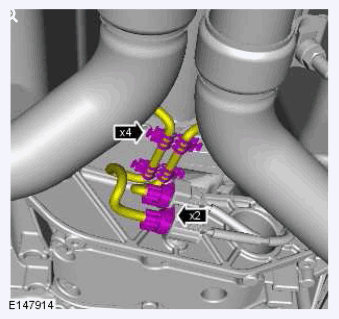

  6. G11423823

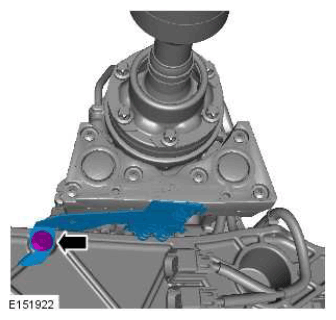

  7. G11423824

    Torque Specification: 7 Nm

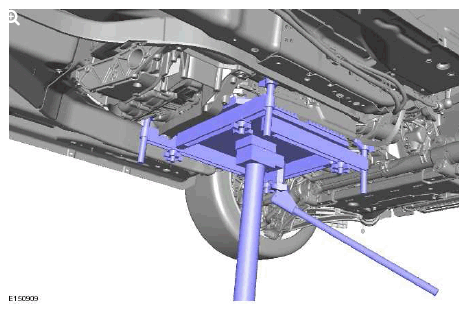

  8. G11423825

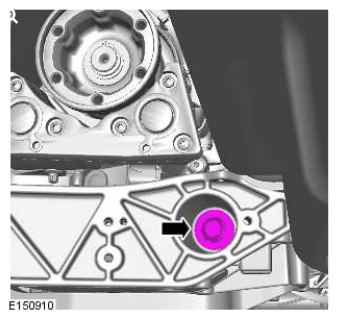

  9. G11423826

    Torque Specification: 103 Nm

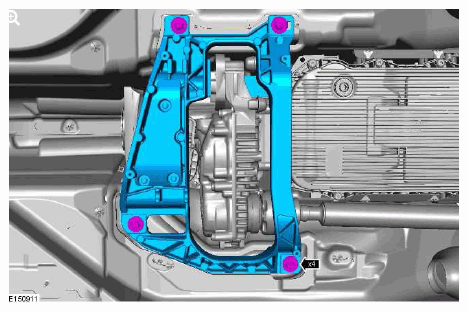

  10. G11423827

    Torque Specification: 48 Nm

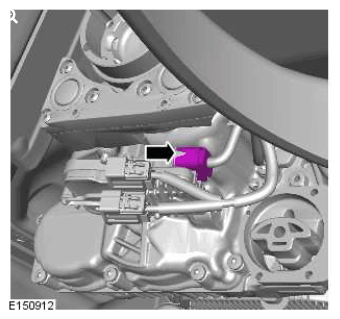

  11. G11423828

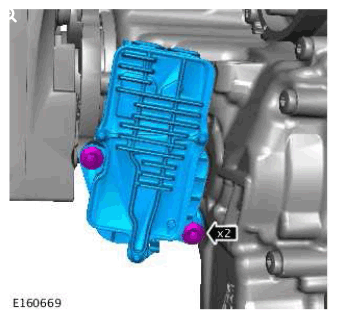

  12. G11423829

    Torque Specification: 22 Nm
