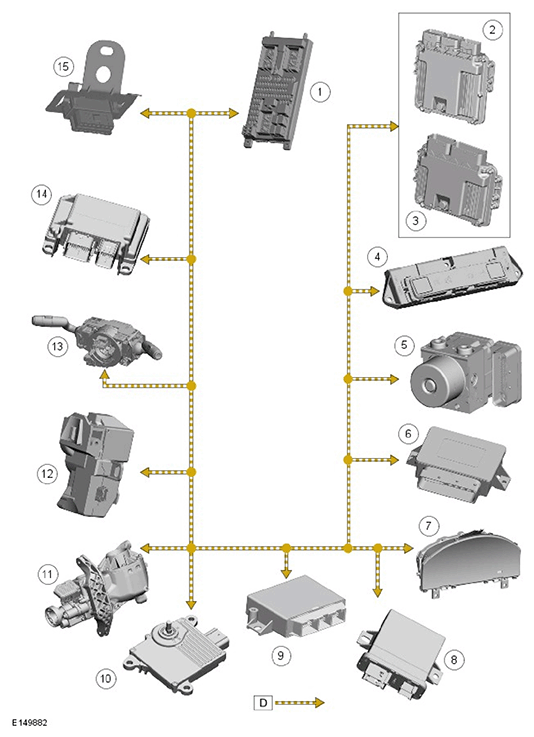

Control Diagram - High Speed Can Bus
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
D
= High speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | CJB |
| 2 | ECM - TD4 2.2L DIESEL |
| 3 | ECM - GTDi 2.0L PETROL |
| 4 | Terrain Response (TR) switchpack |
| 5 | Anti-Lock Brake System (ABS) control module |
| 6 | Electric Park Brake Control Module (EPBCM) |
| 7 | IC |
| 8 | Headlamp Leveling Control Module (HLCM) |
| 9 | Park Distance Control Module (PDCM) |
| 10 | TCM |
| 11 | Rear Differential Control Module (RDCM) |
| 12 | Electric Steering Column Lock (ESCL) |
| 13 | Clockspring |
| 14 | Restraints Control Module (RCM) |
| 15 | Diagnostic socket |
