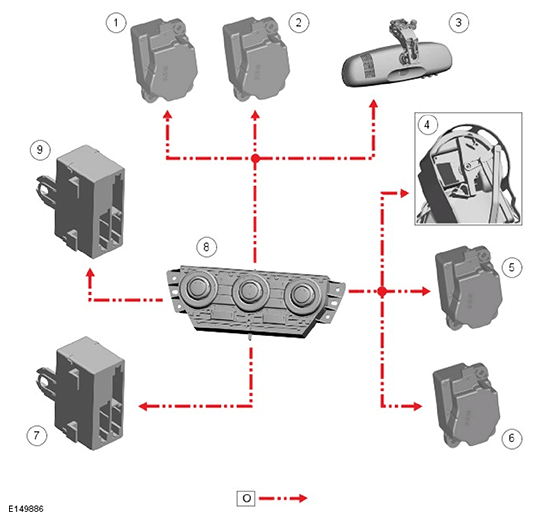

Control Diagram - Lin Bus (Sheet 2 Of 3)
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
O
= LIN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Left distribution motor |
| 2 | Right distribution motor |
| 3 | Humidity sensor |
| 4 | Center distribution motor |
| 5 | Demist distribution motor |
| 6 | Face/feet distribution motor |
| 7 | Driver Seat Climate Control Module (DSCCM) |
| 8 | Automatic Temperature Control (ATC) module |
| 9 | Passenger Seat Climate Control Module (PSCCM) |
