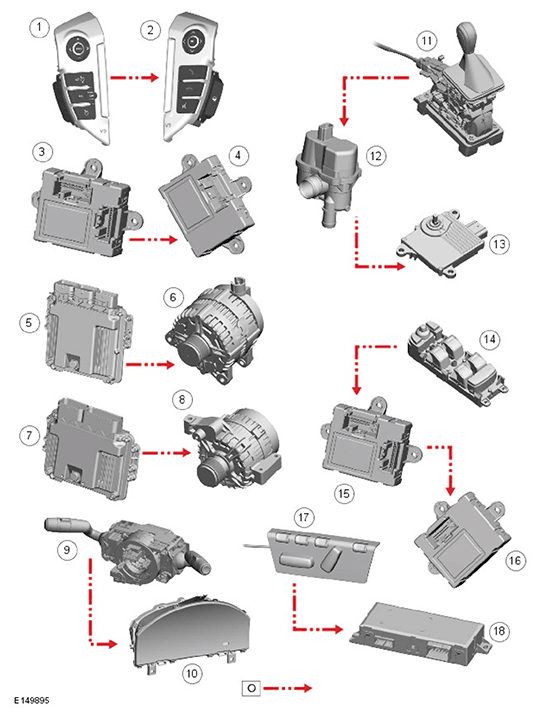

Control Diagram - Lin Bus (Sheet 3 Of 3)
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
O
= LIN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Left steering wheel switchpack |
| 2 | Right steering wheel switchpack |
| 3 | Passenger Door Module (PDM) |
| 4 | Left rear door module |
| 5 | Engine Control Module (ECM) - TD4 2.2L DIESEL |
| 6 | Generator - TD4 2.2L DIESEL |
| 7 | ECM - GTDi 2.0L PETROL |
| 8 | Generator - GTDi 2.0L PETROL |
| 9 | Clockspring |
| 10 | Instrument Cluster (IC) |
| 11 | Transmission Control Switch (TCS) |
| 12 | Diagnostic Module Tank Leakage (DMTL) pump (NAS only) |
| 13 | Transmission Control Module (TCM) |
| 14 | Driver door switchpack |
| 15 | Driver Door Module (DDM) |
| 16 | Right rear door module |
| 17 | Driver seat memory switchpack |
| 18 | Driver Seat Module (DSM) |
