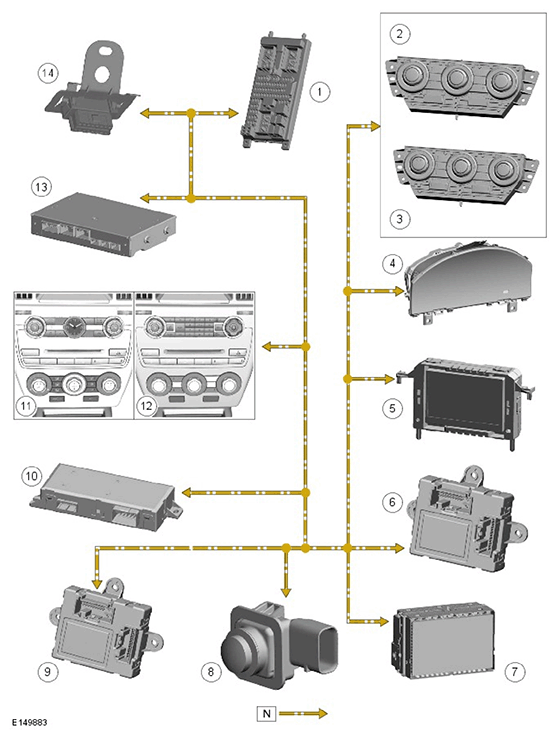

Control Diagram - Medium Speed Can Bus
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
N
= Medium speed CAN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Central Junction Box (CJB) |
| 2 | ATC module (hi-line) |
| 3 | ATC module (lo-line) |
| 4 | IC |
| 5 | Multi-Function Display (MFD) (Lo-line only) |
| 6 | DDM |
| 7 | Touch Screen (TS) (Hi-line only) |
| 8 | Rear View Camera (RVC) |
| 9 | PDM |
| 10 | Driver Seat Module (DSM) |
| 11 | Integrated Control Panel (ICP) - Hi-line |
| 12 | ICP - Lo-line |
| 13 | Telephone Interface Module (TIM) |
| 14 | Diagnostic socket |
