Control Diagram - Most

WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: = MOST

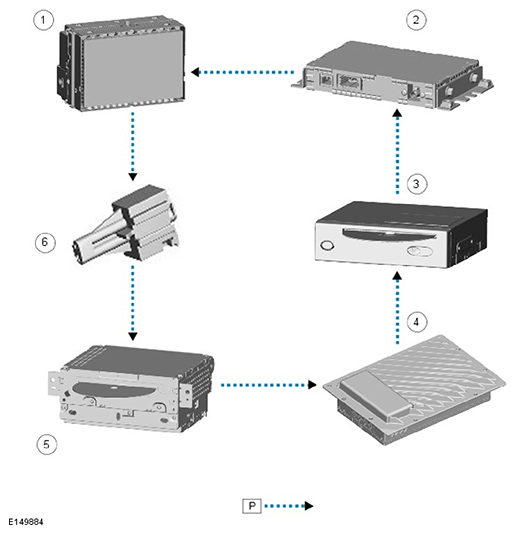

G11593190
ITEM DESCRIPTION
1 TS
2 Satellite Digital Audio Radio Service (SDARS) (NAS only)/Digital radio module
3 Navigation Control Module (NCM) (Japan)
4 Audio Amplifier Module (AAM)
5 IAM
6 Diagnostic socket
