Navigation System Components

Courtesy of JAGUAR CARS, INC.

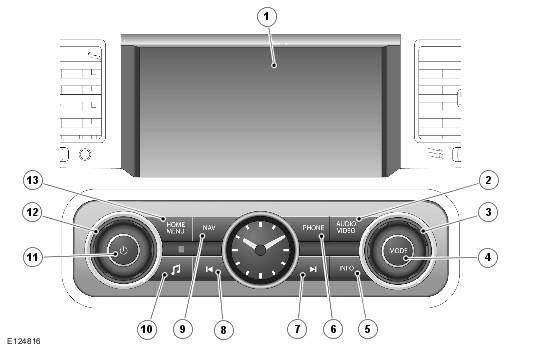

The TSD (touch screen display) and Integrated Control Panel are located in the center of the instrument panel and are the driver's control interface for the navigation system. The TSD is connected to the MOST ring and communicates with the other components in the audio/infotainment system.

The TSD is a seven inch touch sensitive, 1280 X 480 pixels LCD (liquid crystal display) VGA screen.

In addition to the navigation system the TSD and the Integrated Control Panel provides the driver with display and control of various other vehicle functions.

Courtesy of JAGUAR CARS, INC.

The microphone is located in the front interior lamp console. The standard, directional type microphone is connected to the Touch Screen Display (TSD) for voice recognition of the navigation system and the telephone. The microphone has an integrated noise suppression system for hands-free telephone use.

Courtesy of JAGUAR CARS, INC.

The TMC (traffic message channel) antenna amplifier is located above the rear left-hand-side window and is connected to the FM antenna which is integrated into the window. The TMC signals are received through the normal radio signals via the RDS (radio data system) and routed separately from the radio signals via the TMC antenna amplifier to the Touch Screen Display unit.

Courtesy of JAGUAR CARS, INC.

In addition to the global positioning system (GPS) antenna the roof mounted pod incorporates various antennas to support the vehicle's audio and telephone systems. The GPS antenna is connected to the Touch Screen Display unit.

Courtesy of JAGUAR CARS, INC.

The VICS beacon is located on top of the instrument panel on the left-hand-side. The beacon is connected to the TSD via a screened co-axial cable.

Courtesy of JAGUAR CARS, INC.

The VICS antenna amplifier is located above the rear left-hand-side window. The amplifier is connected to the TSD unit.
