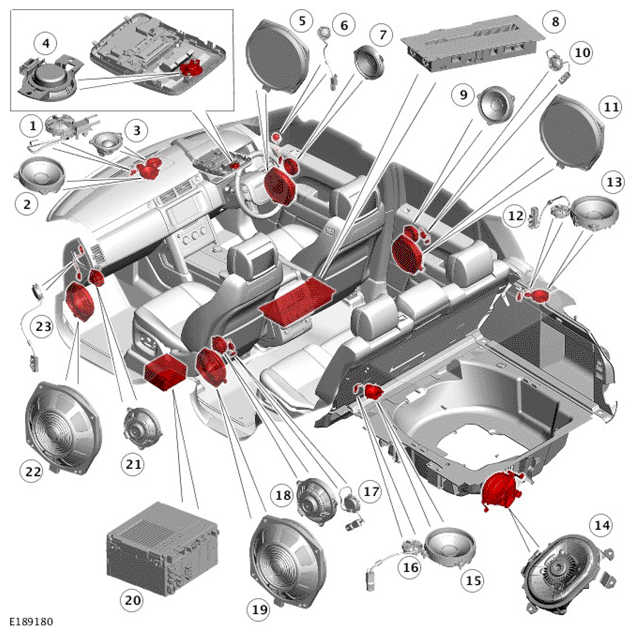

| 1 |
Instrument panel tweeter speaker |
| 2 |
Instrument panel mid-range speaker |
| 3 |
Telematics speaker (Russia markets only) |
| 4 |
Telematics speaker (All markets except Russia) |
| 5 |
Front right bass speaker |
| 6 |
Front right tweeter speaker |
| 7 |
Front right mid-range speaker |
| 8 |
Audio Amplifier Module (AAM) |
| 9 |
Rear right mid-range speaker |
| 10 |
Rear right tweeter speaker |
| 11 |
Rear right bass speaker |
| 12 |
Right luggage compartment tweeter speaker |
| 13 |
Right luggage compartment mid-range speaker |
| 14 |
Fresh air sub-woofer |
| 15 |
Left luggage compartment mid-range speaker |
| 16 |
Left luggage compartment tweeter speaker |
| 17 |
Rear left tweeter speaker |
| 18 |
Rear left mid-range speaker |
| 19 |
Rear left bass speaker |
| 20 |
Infotainment Master Controller (IMC) |
| 21 |
Front left mid-range speaker |
| 22 |
Front left bass speaker |
| 23 |
Front left tweeter speaker |
