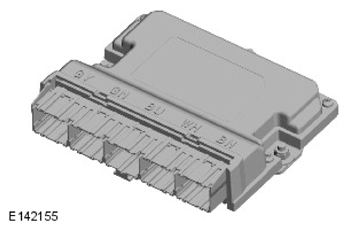

Dynamic Response Control Module

The Dynamic Response Control Module is located on the driver's side 'A' post, below the instrument panel. The Dynamic Response Control Module is secured to a bracket with three nuts. Three connectors are located on the lower face of the Dynamic Response Control Module and allow for the connection of the harness connectors. The three connectors supply power, ground, signal and sensor information to and from the Dynamic Response Control Module for control of the Dynamic Response System.
