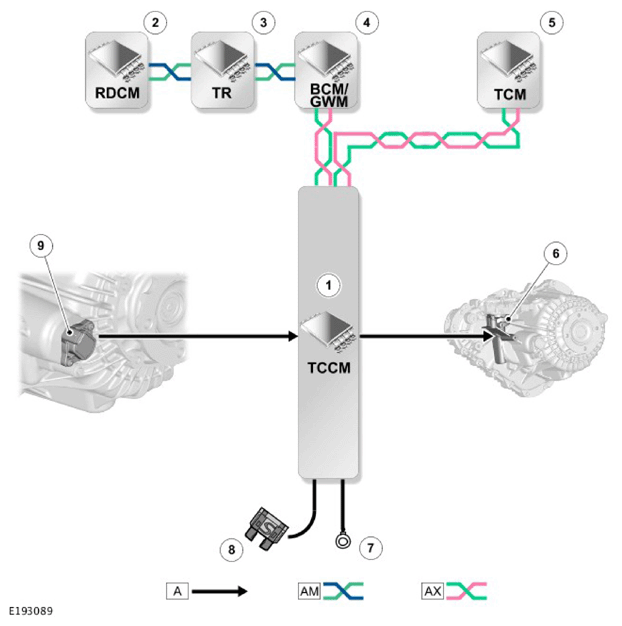

Control Diagram - Transfer Case Control Module
A = HARDWIRED: AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS: AX = FLEXRAY BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transfer Case Control Module (TCCM) |
| 2 | Rear Differential Control Module (RDCM) - If Equipped |
| 3 | Terrain Response (TR) switchpack - High/Low range selection switch |
| 4 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 5 | Transmission Control Module (TCM) |
| 6 | Transfer case actuator |
| 7 | Ground |
| 8 | Power supply |
| 9 | High/Low range position sensor |
