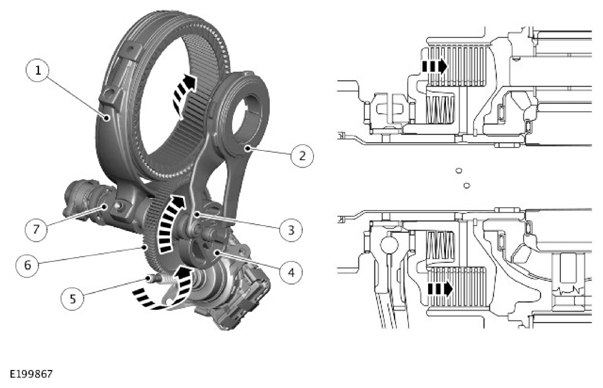

Transfer Case Motor Position For Clutch Control Mode
| ITEM | DESCRIPTION |
|---|---|
| 1 | Shifting fork - High/Low range |
| 2 | Fixed lever |
| 3 | Clutch lever |
| 4 | Clutch control disc |
| 5 | Motor shaft |
| 6 | Gear |
| 7 | Actuation shaft |
During range change operation, when the multiplate clutch is open, the center differential cannot be locked and the torque cannot be biased. Once the range change is complete the system returns to clutch control mode.
