Removal And Installation: Removal

CAUTION:

If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
Care must be taken not to bend or damage the brake pipes during removal.
Make sure that all openings are sealed.

NOTE:

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Remove the left hand front wheel and tire.
Refer to: WHEEL AND TIRE - TDV6 3.0L DIESEL/TDV8 4.4L DIESEL/V6 S/C 3.0L PETROL/V8 N/A 5.0L PETROL/V8 S/C 5.0L PETROL .

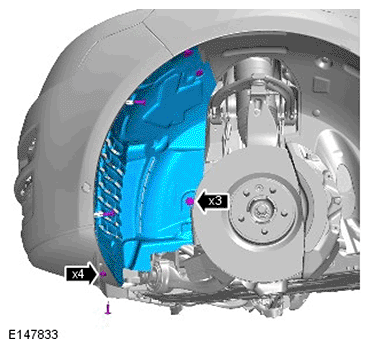

Refer to: LEFT AIR CLEANER .

Refer to: LEFT AIR CLEANER .

Refer to: LEFT AIR CLEANER .

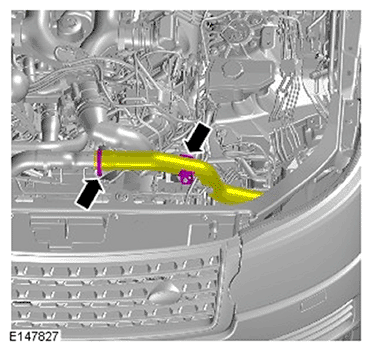

NOTE: Vehicles with diesel engine only.

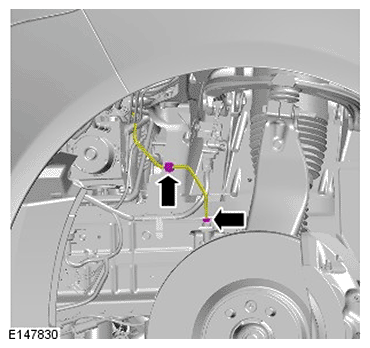

CAUTION:
- Care must be taken not to bend or damage the brake pipes during removal.
- Make sure that all openings are sealed.
- Be prepared to collect escaping fluid.
Torque Specification: 16 Nm

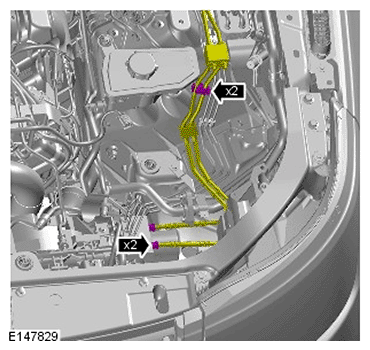

CAUTION:
- Care must be taken not to bend or damage the brake pipes during removal.
- Make sure that all openings are sealed.
- Be prepared to collect escaping fluid.
Torque Specification: 20 Nm

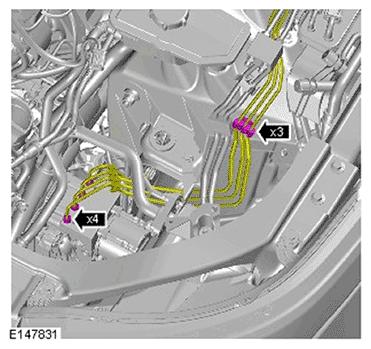

CAUTION:
- Care must be taken not to bend or damage the brake pipes during removal.
- Make sure that all openings are sealed.
- Be prepared to collect escaping fluid.
Torque Specifications:

M10 16 Nm

M12 18 Nm

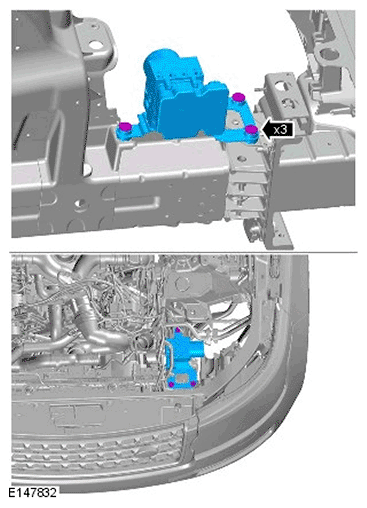

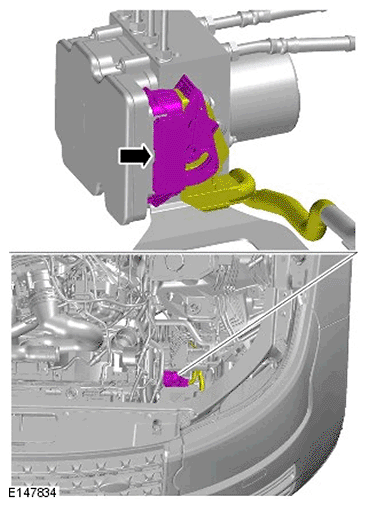

Torque Specification: 9 Nm

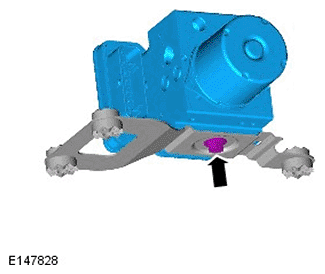

NOTE: Do not disassemble further if the component is removed for access only.

Torque Specification: 27 Nm
