Valve Block Selection During CHCMB Re-Flash (SSM71877)

Publication date: 2014-07-04
Reference number: SSM71877

VALVE BLOCK SELECTION DURING CHCMB RE-FLASH

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM71877, Date of Issue: July 04, 2014

LAND ROVER:	Range Rover/L405, Range Rover Sport/L494
CATEGORY:	Diagnostic Software Hardware

SERVICE INFORMATION

Symptom 000101 Diagnostic Concerns

ISSUE

Content

When re-flashing the Chassis Control Module B (CHCMB) SDD presents a question asking the user "Please select one of the following options": "CPLA Valve Block" OR "FPLA Valve Block"

ACTION

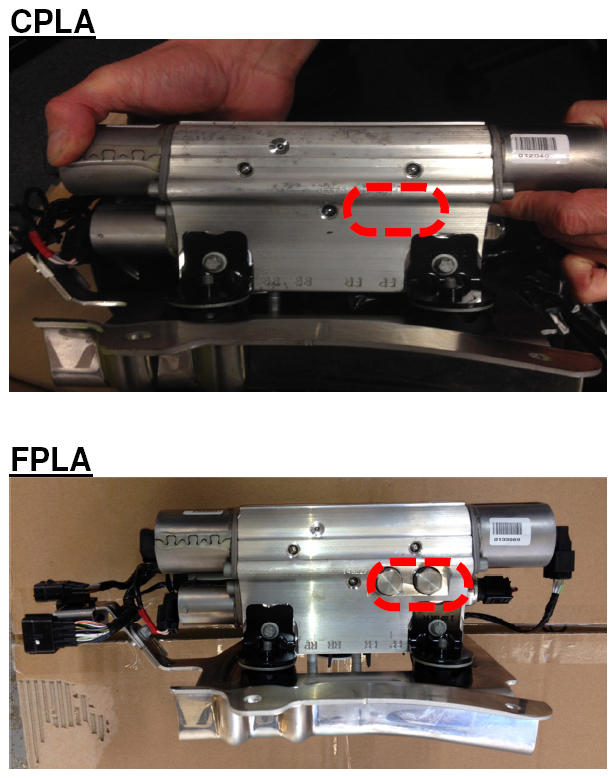

Confirm which dynamic response (ARC) valve block is fitted/being fitted to the vehicle using the attached images. SDD will then flash the correct software levels.

Additional notes:

For 14MY vehicles when an FPLA level valve block is being installed, please also re-flash the Power Steering Control Module (PSCM) software.
