Removal And Installation: Removal

CAUTION:

Extreme cleanliness must be exercised when handling these components.
If brake fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

All vehicles

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Disconnect the battery ground cable.
Refer to: BATTERY DISCONNECT/CONNECT .
Remove the battery tray.
Refer to: Battery Tray .

Right-hand drive vehicles

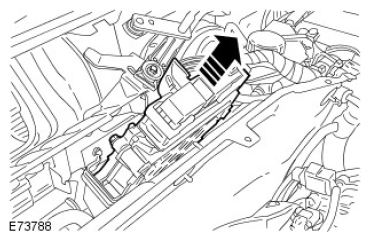

Remove the plenum chamber panel.
Left-hand drive vehicles
Remove the windshield wiper motor and linkage.
Refer to: Windshield Wiper Motor .
CAUTION: Make sure that all openings are sealed.

All vehicles

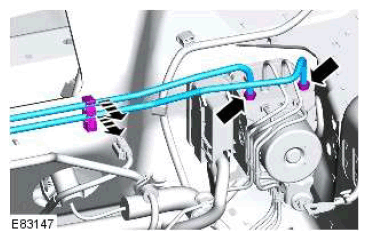

Left-hand drive vehicles
CAUTION:
- Be prepared to collect escaping fluids.
- Make sure that all openings are sealed.
Right-hand drive vehicles
CAUTION:
- Be prepared to collect escaping fluids.
- Make sure that all openings are sealed.

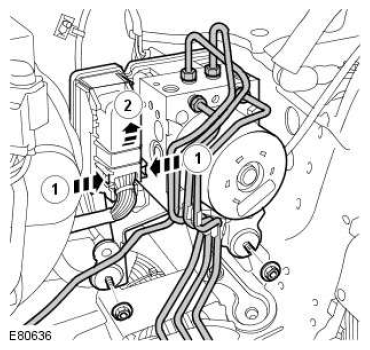

All vehicles
CAUTION:
- Be prepared to collect escaping fluids.
- Make sure that all openings are sealed.
