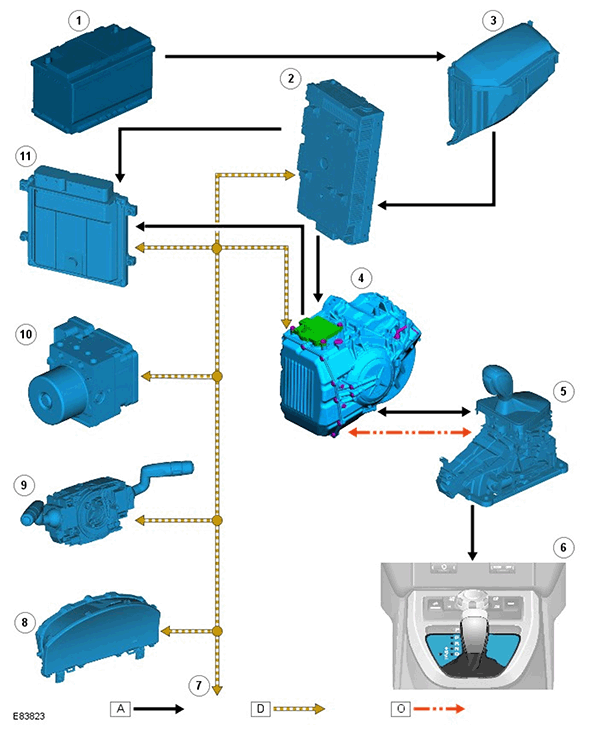

Control Diagram
NOTE:
A
= Hardwired; D
= High speed CAN bus; O
= LIN bus
| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Central Junction Box (CJB) |
| 4 | TCM |
| 5 | Selector lever |
| 6 | Selector lever PRND and M/S Light Emitting Diode (LED) displays |
| 7 | High speed CAN bus to other vehicle systems |
| 8 | Instrument cluster |
| 9 | Steering angle sensor |
| 10 | ABS module |
| 11 | ECM |
