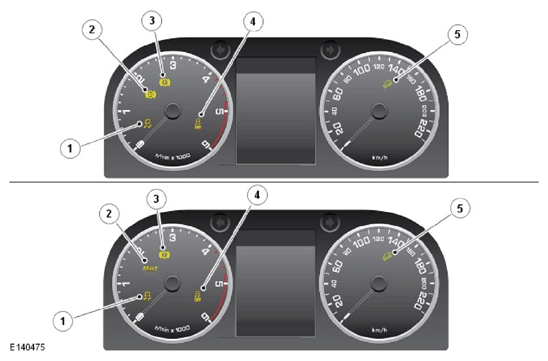

Warning Indicators
| ITEM | DESCRIPTION |
|---|---|
| A | ROW instrument cluster |
| B | NAS instrument Cluster |
| 1 | DSC (dynamic stability control) system active warning lamp |
| 2 | ABS warning lamp |
| 3 | EBA warning lamp |
| 4 | DSC (dynamic stability control) system off warning lamp |
| 5 | HDC (hill decent control) warning indicator |
The instrument cluster contains two types of warning indicator to display the operating status of the selected anti-lock control/traction control functions. The warning indicators provide a visual notification of either a system warning or system information to the driver.
